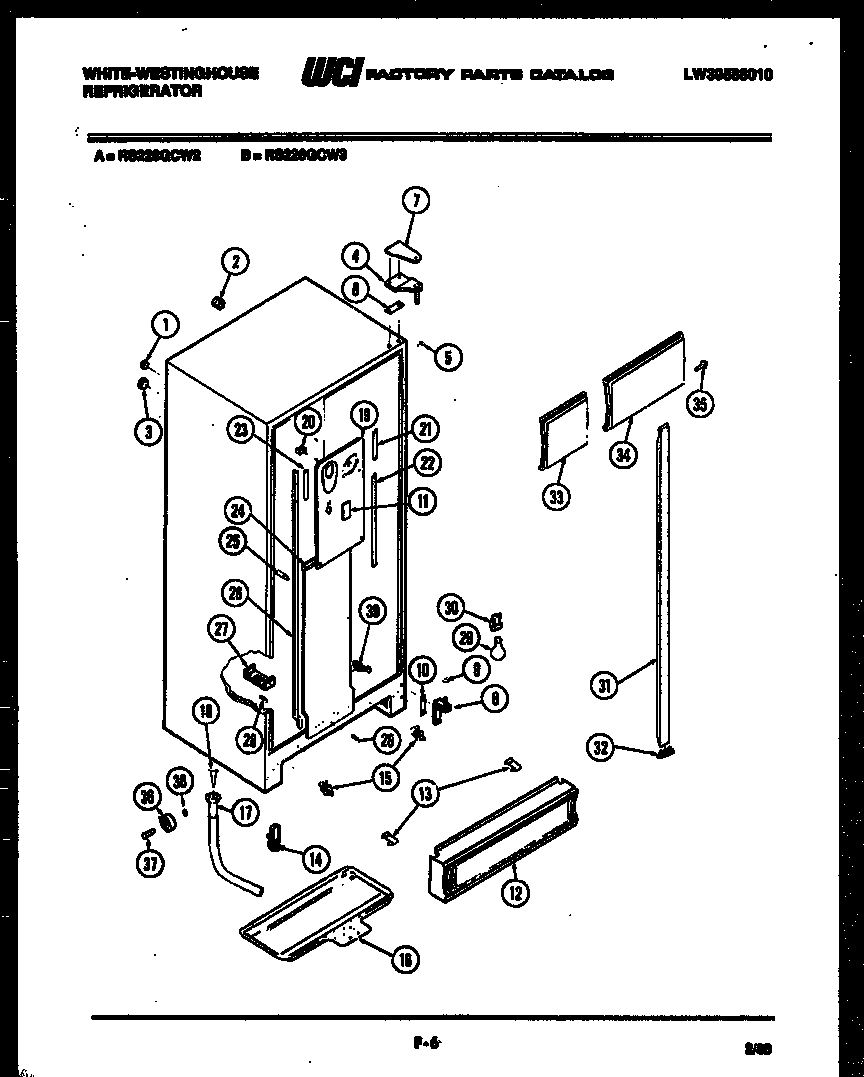

RS226GCF3 04 – CABINET PARTS

Products

Position	Product
*67655	BUTTON, LINER
*67655	BUTTON, PLUG, LINER (2)
1	WCI G174734
2	TUBE, INSULATION (2)
3	WCI G174733
4A	WCI G183716
4B	241710601 Frigidaire Refrigerator Screw
4	HINGE-TOP RS
4C	TAPPING PLATE (2)
5	WASHER, NYLON
6	WCI G183861
7	COVER HINGE, COFFEE
8B	WCI G141673
8	BRACKET-LOWER HINGE
8A	SCREW – 1/4 X 1 (2)
9	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
10B	NUT, SPEED (2)
10	SHIM, HINGE
10A	WCI G142361
11	WCI G165416-15
12	WCI G171540-02
13	CLIP, GRILLE
14A	BOLT, HOUSING TO FRONT RAIL (2)
14	ROLLER ASSY (2)
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI G171125
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI G171193
19A	NUT, ORIFICE (2)
19	WCI G169481-01
20	WCI G163669
21	WCI G165233
22	WCI G174234-02
23	WCI G174234-01
24	WCI G169477-03
25	WCI G169471
26	WCI G188000-03
27B	WCI G184851
27	WCI G158022
27A	WASHER
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	LIGHT BULB
31	MULLION-COFE
31A	WCI G169100
31B	WCI G169297
32	TRIM-MULLN-COFE
33	LIGHT SHIELD-FREEZER
34	LINER – OVEN BOTTOM
35	WCI G165177
36	ROLLER (2)
37	WCI G162809
38	NUT, DAMPER MOUNTING
39	WCI G164912-03
