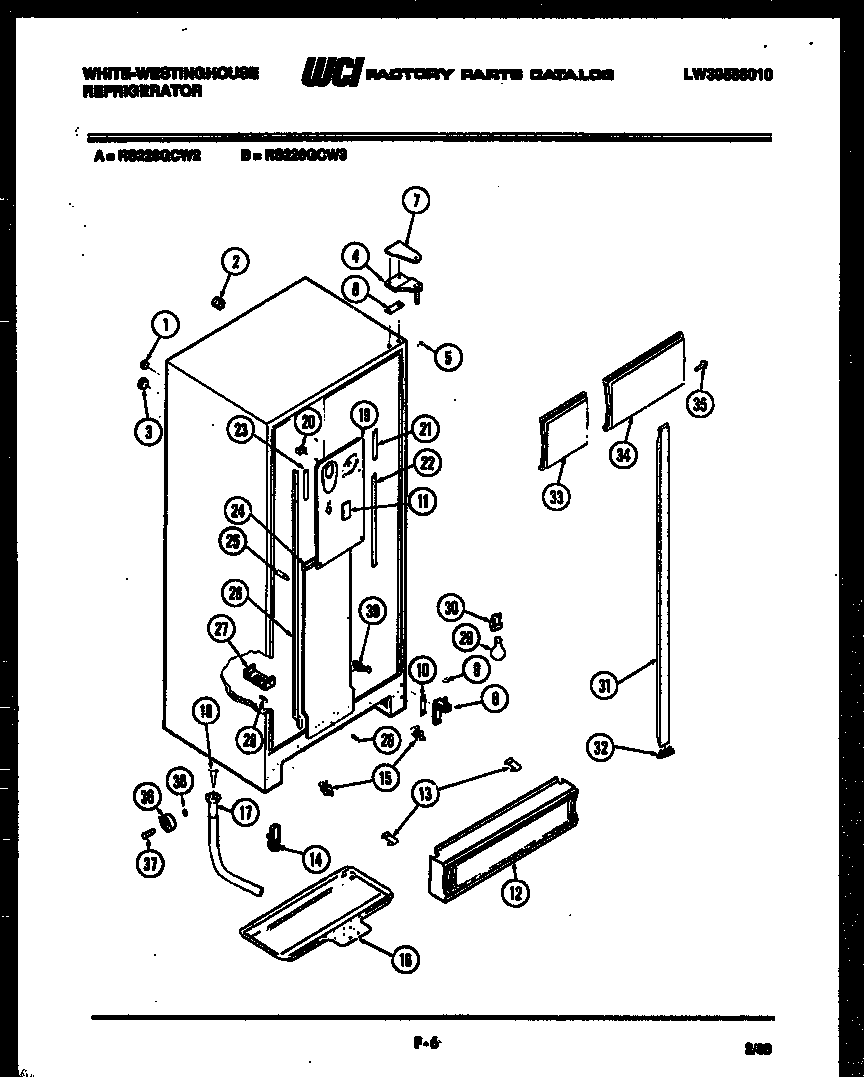

RS226GCV2 04 – CABINET PARTS

Products

Position	Product
*67655	BUTTON, LINER
*67655	BUTTON, PLUG, LINER (2)
1	WCI G174734
2	TUBE, INSULATION (2)
3	WCI G174733
4	HINGE-TOP RS
4A	WCI G183716
4C	TAPPING PLATE (2)
4B	241710601 Frigidaire Refrigerator Screw
5	WASHER, NYLON
6	WCI G183861
7	COVER, TOP HINGE, AVOCADO
8A	SCREW – 1/4 X 1 (2)
8B	WCI G141673
8	BRACKET-LOWER HINGE
9	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
10	SHIM, HINGE
10B	NUT, SPEED (2)
10A	WCI G142361
11	WCI G165416-15
12	WCI G171540-02
13	CLIP, GRILLE
14	ROLLER ASSY (2)
14A	BOLT, HOUSING TO FRONT RAIL (2)
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI G171125
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI G171193
19A	NUT, ORIFICE (2)
19	WCI G169481-01
20	WCI G163669
21	WCI G165233
22	WCI G174234-02
23	WCI G174234-01
24	WCI G169477-03
25	WCI G169471
26	WCI G188000-03
27	WCI G158022
27B	WCI G184851
27A	WASHER
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	LIGHT BULB
31	MULLION AVOC.
31B	WCI G169297
31A	WCI G169100
32	TRIM-MULLN-AVOC
33	LIGHT SHIELD-FREEZER
34	WCI G169601-13
35	WCI G165177
36	ROLLER (2)
37	WCI G162809
38	NUT, DAMPER MOUNTING
39	WCI G164912-03
