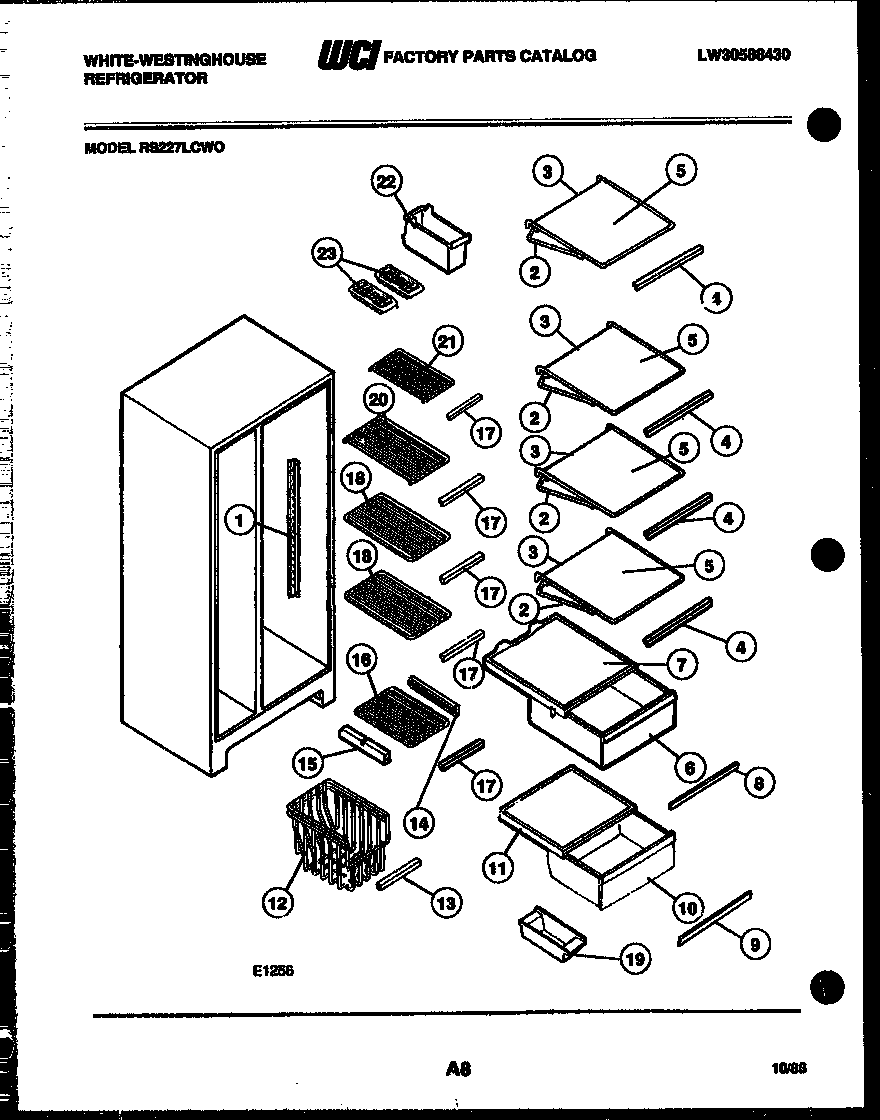

RS227LCH0 05 – SHELVES AND SUPPORTS

RS227LCH0 05 – SHELVES AND SUPPORTS

Written by

in

RS227LCH0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1A5304455852 Frigidaire Refrigerator Screw
1CHANNEL-RS & LS
2WCI G178323-08
3WCI G172409-12
5WCI G171654-32
6WCI G179709-01
7COVER-PAN UPPER
7AGASKET-COVER UPR (2) (NON-ILLUSTRATED)
9WCI G177343-06
10WCI G179710-01
11COVER-PAN-LOWER
12WCI G184748
13WCI G165746-11
14HANGER-BASKET RS
15HANGER-BASKET LS
17WCI G187267-13
19A5304509705 Frigidaire Refrigerator Grommet
19CONTAINER-EGG
20SHELF-FREEZER CTR (3)
21SHELF-FREEZER (2)
22CONTAINER ICE
23215667501 Frigidaire Refrigerator Ice Tray Primary
