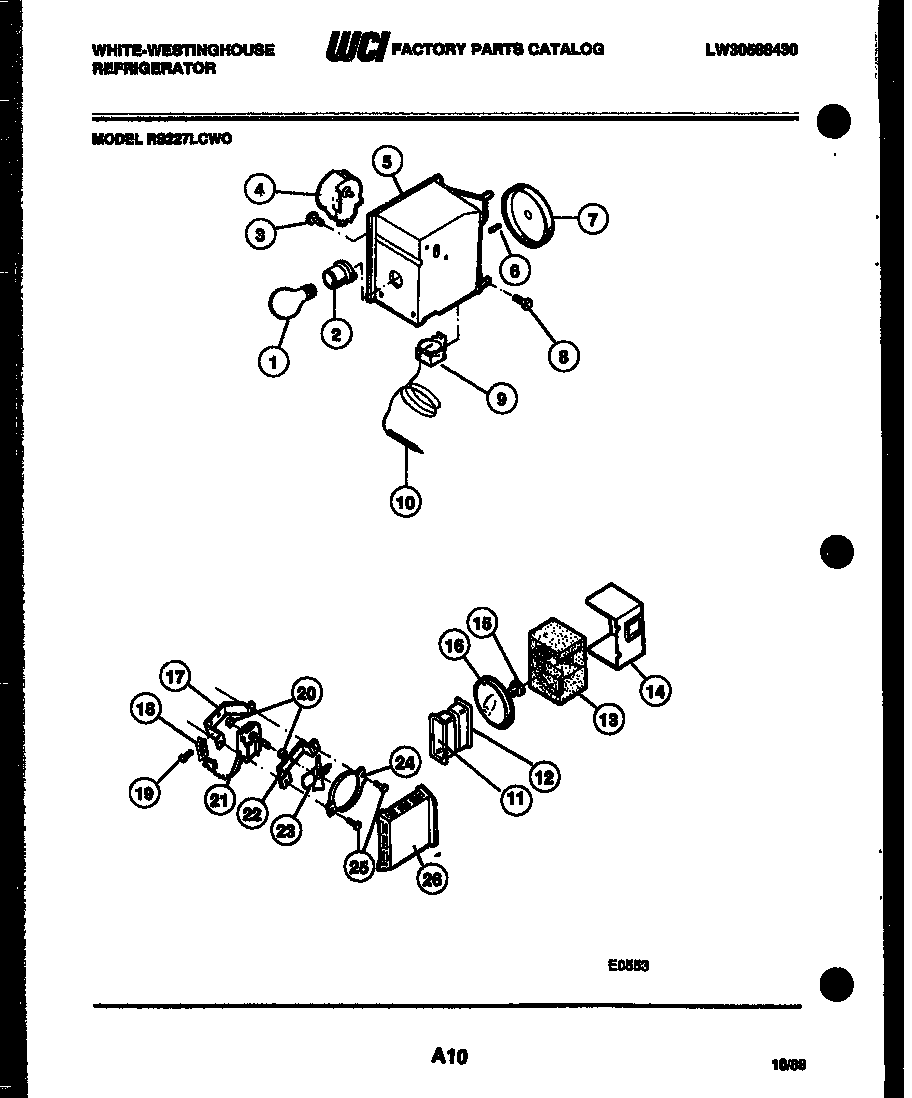

RS227LCV0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

RS227LCV0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

RS227LCV0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1316538904 Frigidaire Oven Lamp Light
2SOCKET LIGHT
35304455852 Frigidaire Refrigerator Screw
4215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5WCI G189359
6WCI G107080
7WCI G164906-01
85304455649 Frigidaire Refrigerator Screw
9WCI G162205-05
10TUBE
11WCI G166802
12WCI G166803
13WCI G164575
14WCI G164523
15WCI G185373
16KNOB, DAMPER CONT.
17WCI G185303
18WCI G164571
195304455651 Frigidaire Refrigerator Screw
20G187559 Frigidaire Refrigerator Bushing
215300158289 Frigidaire Evaporator Fan Motor
22WCI G185302
235308000010 Frigidaire Refrigerator Evaporator Fan Blade
24RING, FAN ORIFICE
255304455650 Frigidaire Refrigerator Screw
26WCI G164654-01
