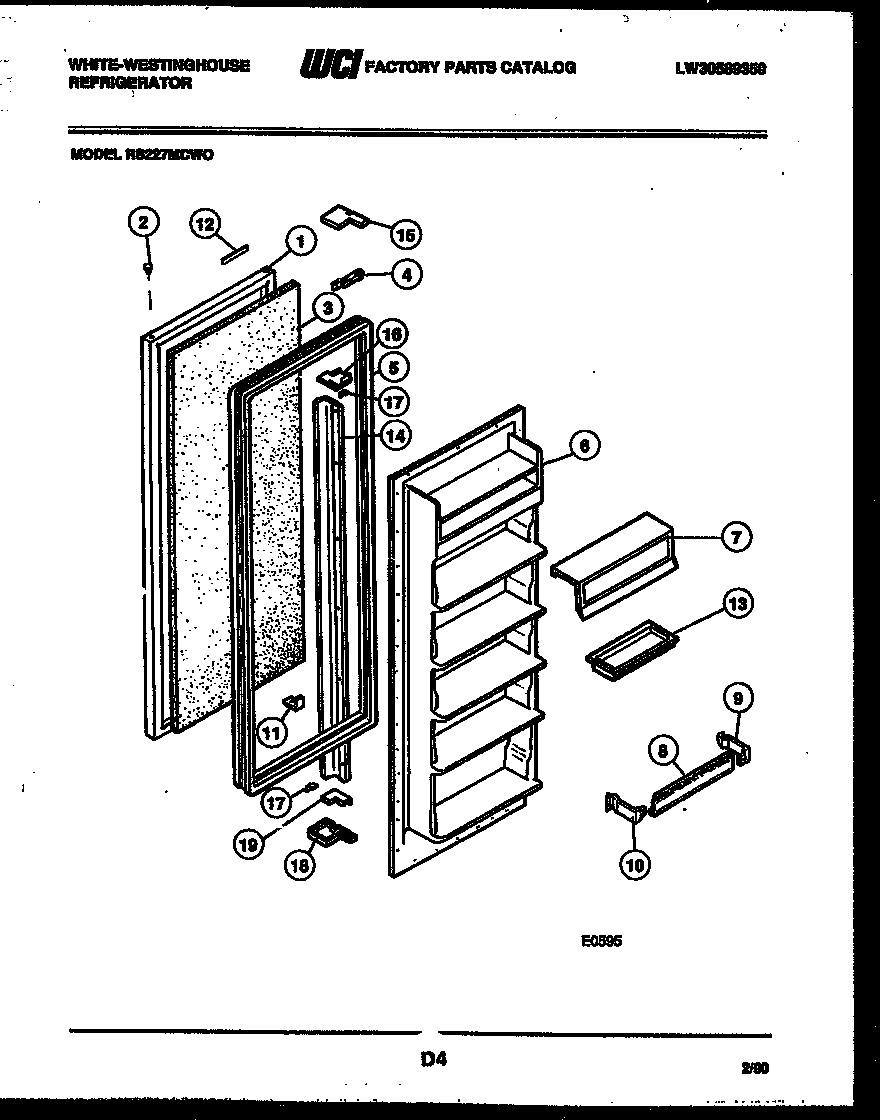

RS227MCF0 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR-COFFEE
1A	WCI G152308-01
2A	BEARING, HINGE (3)
2	WCI G183139
3	WCI G89643
4A	WCI G169729
4	WCI 3200272
5	WCI 3205400
6	WCI G179991-01
7	WCI 5303207066
8	WCI G490079-12
9	SUPPORT-RS (5)
10	SUPPORT-LS (5)
11A	5304455651 Frigidaire Refrigerator Screw
11	BUMPER-LIGHT SW.
12	WCI 3206159
12A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
13	5308000716 Frigidaire Refrigerator Dish
14	WCI 5303207069
14A	WCI G185566
15	CAP
16	TRIM, TOP
17	CLIP
18	CAP
19	TRIM, BTM
