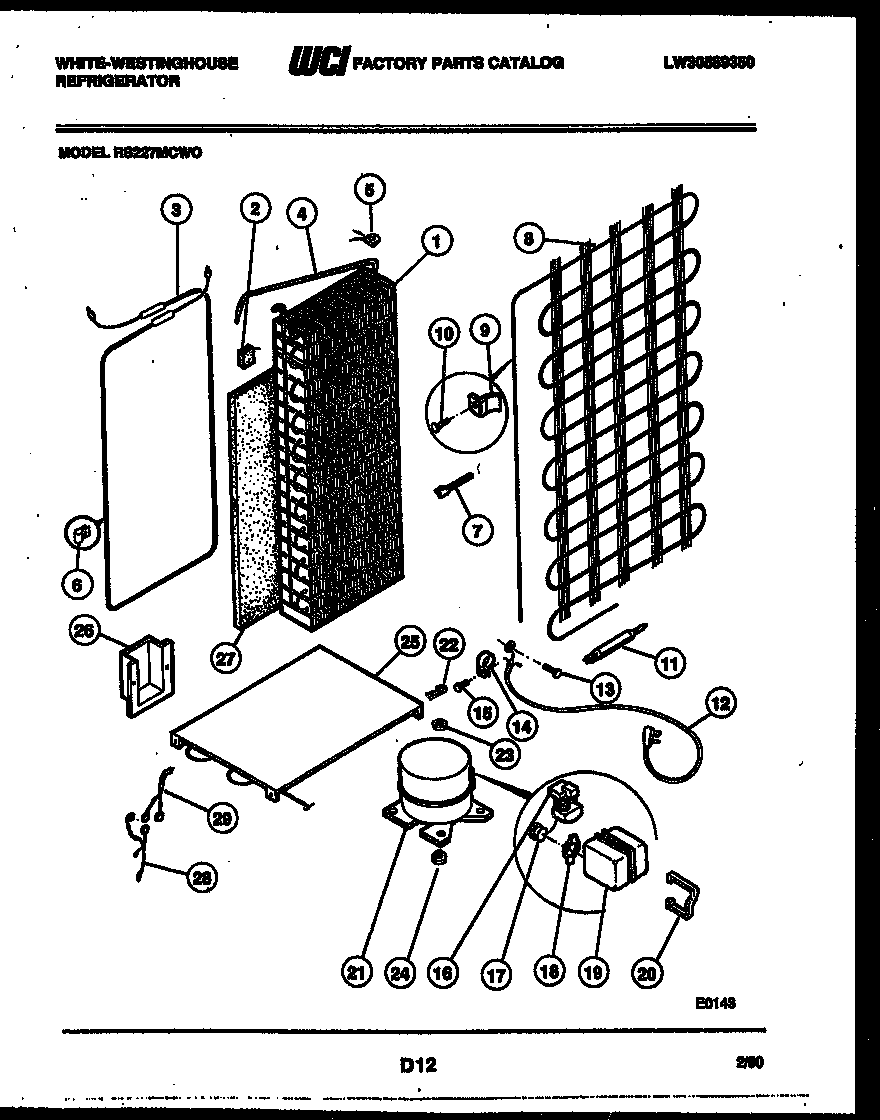

RS227MCH0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS227MCH0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS227MCH0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*26086WCI G189379
1WCI 3017362
2WCI G169493
3WCI G190223
4WCI G189609
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI 3007521
9BRACKET, COND. MTG (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16WCI 3007176
17WCI 3007527
18RETAINER, OVERLOAD
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21COMPRESSOR WITH ELECTRICALS
22CLIP, COMPRESSOR MOUNTING (4)
23WASHER, COMPRESSOR MOUNTING (4)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25C218843801 Frigidaire Refrigerator Screw
25WCI 08017112
25BBRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25AWCI G171111
26WCI G183584
27WCI G169641
28WIRING HARNESS-COMPR & LIGHTS
29WCI 3015098
