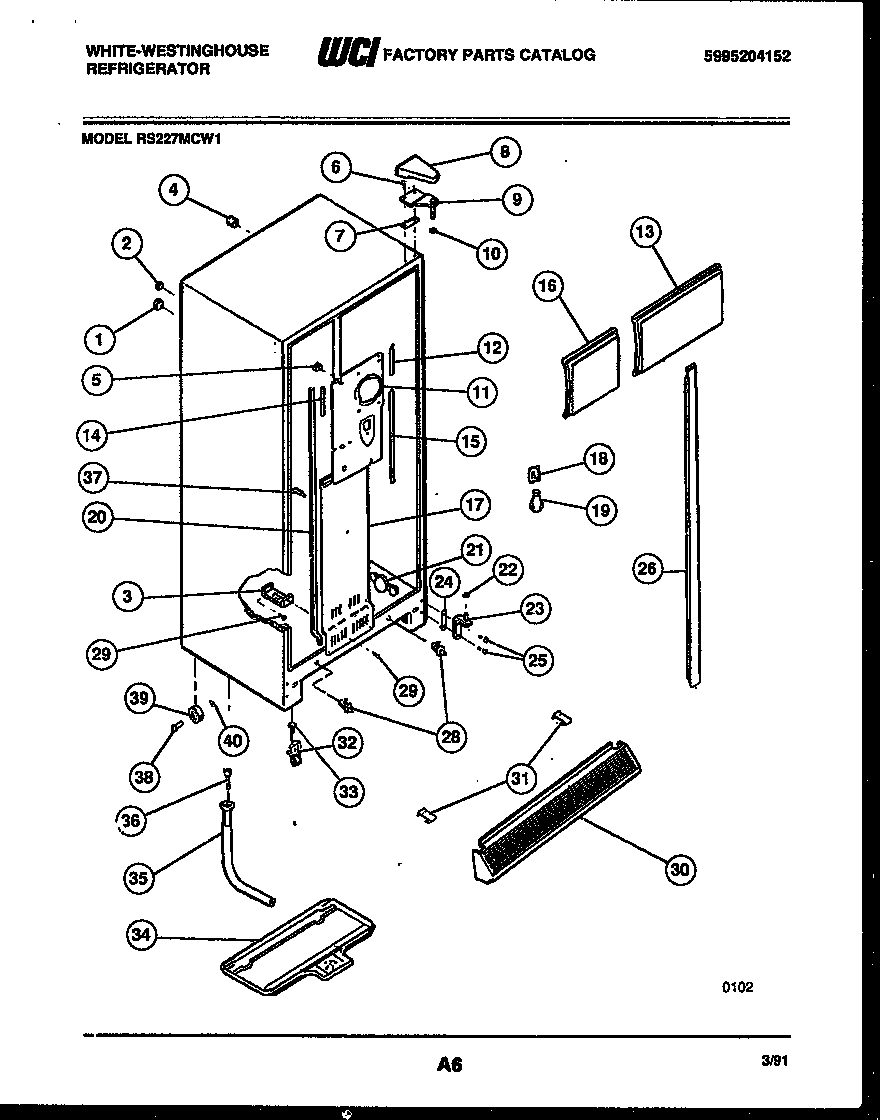

RS227MCV1 04 – CABINET PARTS

Products

Position	Product
*42482	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42482	WCI 5303001230
*42482	WCI 5303001288
*42482	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
1	WCI 5303001286
2	WCI 5303001287
3	WCI 5308000738
4	TUBE-RUBBER
5	SUPPORT-COIL COVER
6	241710601 Frigidaire Refrigerator Screw
7	SHIM – UPPER HINGE
8	COVER-HINGE-AVOCADO
9	WCI 5308012934
9A	WCI 5303001062
10	WCI 5308000186
11B	5303208309 Frigidaire Refrigerator Plug Hole
11	WCI 5303006543
11A	PLUG-DECORATIVE, ICE MAKER HOLE
12	WCI 5303001219
13	WCI 5303271923
13A	WCI 5303001213
15	WCI 5303001233
16	WCI 5303207094
17	COVER-COIL LOWER
18	218906802 Frigidaire Light Lamp Socket
19	316538904 Frigidaire Oven Lamp Light
20	GASKET, COVER (2)
21	WCI 08017447
22	WASHER, .28 X .62 X .19, NYLON
23A	WCI 5303001273
23	HINGE-BOTTOM
24A	WCI 5308000013
24	SHIM-BTM HINGE (3)
24B	WCI 5300077210
25	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
26A	WCI 5300169100
26	WCI 3916445
26A	WCI 5303001281
28	5303289051 Frigidaire Refrigerator Light Switch
29	5304455650 Frigidaire Refrigerator Screw
30	WCI 5317154002
31	CLIP, GRILLE (2)
32	ROLLER-FRONT (2)
33	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
34	WCI 5303001026
35	WCI 5303209723
36	WCI 5308000853
37	WCI 5303001250
38	WCI 5308000266
39	WCI 5303001030
40	Nut,push-on
