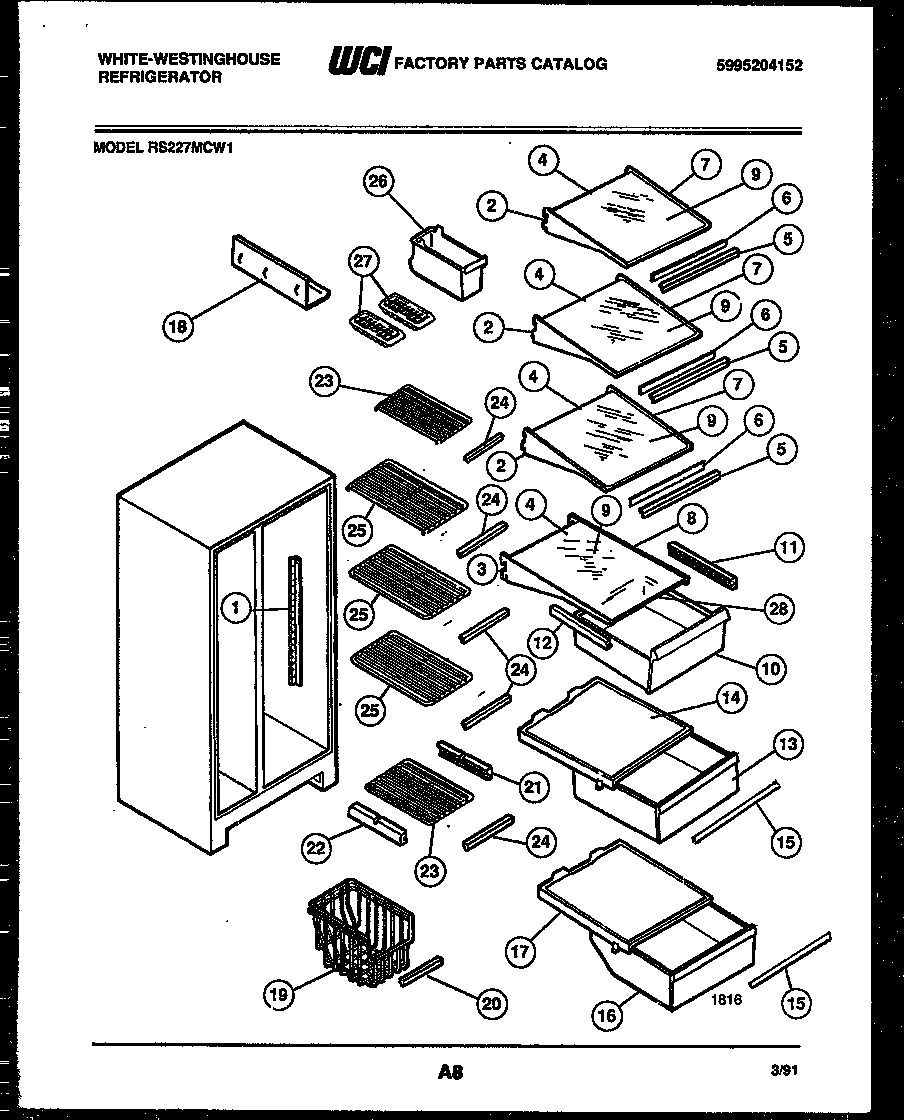

RS227MCV1 05 – SHELVES AND SUPPORTS

RS227MCV1 05 – SHELVES AND SUPPORTS

Written by

in

RS227MCV1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*424875304509705 Frigidaire Refrigerator Grommet
1A5304455852 Frigidaire Refrigerator Screw
1CHANNEL-SHELF MTG (2)
2WCI 3200686
3WCI 5303207089
4WCI 3205561
4AWCI 5303207090
5WCI 5303207081
6WCI 3200683
8RAIL-GLASS SUPT (6)
9WCI 5303207082
10WCI 5303207092
11WCI 5303209748
12WCI 5303209749
13WCI 5303207077
14COVER-CRISPER PAN, MIDDLE
14AGASKET-CRISPER COVER
15WCI 5303207076
16WCI 5303207078
17WCI 5316972401
18RACK – HANGING – EGG
19WCI 5308017594
20WCI G165746-03
21WCI 5303001098
22WCI 5303001099
23WCI 08000908
24TRIM-SHELF (3)
25SHELF-FREEZER (2)
26WCI 5303207065
27215667501 Frigidaire Refrigerator Ice Tray Primary
28WCI 5303207091
