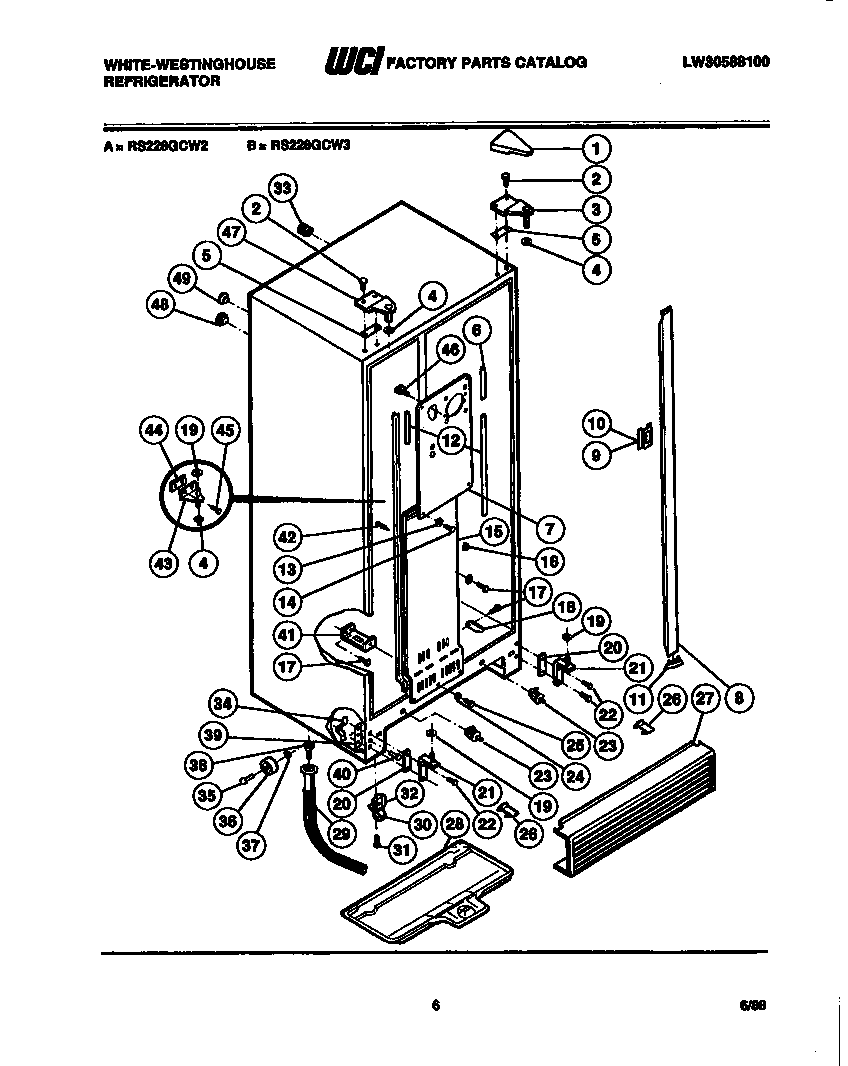

RS228GCD2 04 – CABINET PARTS

Products

Position	Product
*97515	WCI G169486
*97515	5304509705 Frigidaire Refrigerator Grommet
1	COVER, TOP HINGE, ALMOND
2	241710601 Frigidaire Refrigerator Screw
3	HINGE-TOP RS
4	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5	WCI G183861
6	WCI G165233
7	WCI G169481-01
8	MULLION-ALMD
9	WCI G169100
10	WCI G169297
11	TRIM-MULLN-ALMD
12	WCI G174234-01
13	WCI G170839
15	WCI G169477-02
16	WCI G162703
17	5304455650 Frigidaire Refrigerator Screw
18	WCI G164912-03
19	WASHER, NYLON
20	SHIM, HINGE
21	BRACKET-LOWER HINGE
22	SCREW - 1/4 X 1 (2)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER
25	WCI G184851
26	CLIP, GRILLE
27	WCI G171540-02
28	WCI G171125
29	241957901 Frigidaire Refrigerator Tube-Drain
30	ROLLER ASSY (2)
31	SCREW, MTG (2) (NON-ILLUSTRATED)
32	WCI G166171
33	TUBE, INSULATION (2)
34	NUT, SPEED (2)
35	WCI G162809
36	ROLLER (2)
37	NUT, DAMPER MOUNTING
38	WCI G171193
39	WCI G141673
40	WCI G142361
41	WCI G158022
42	WCI G169471
43	WCI G169531
44	WCI G169610
45	SCREW, BRACKET MOUNTING (4)
46	WCI G163669
47	WCI G183716
48	WCI G174733
49	WCI G174734
