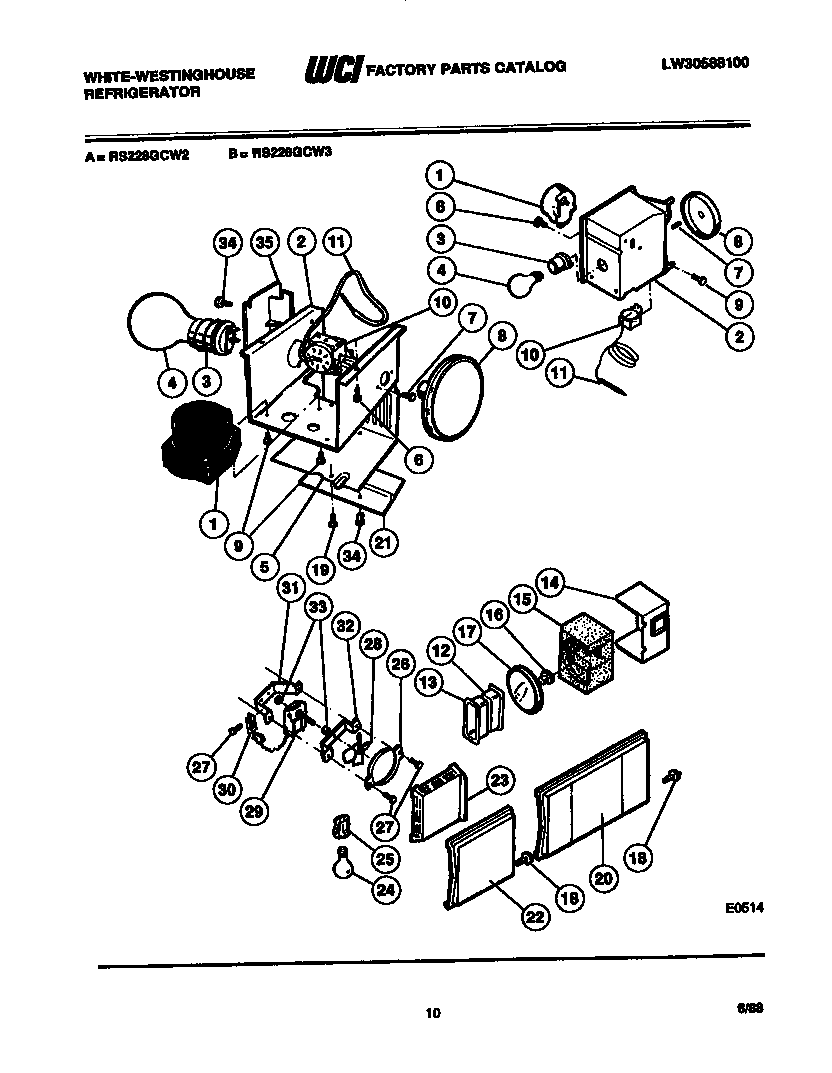

RS228GCF3 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2A	WCI G189359
3	SOCKET LIGHT
4	316538904 Frigidaire Oven Lamp Light
6	5304455852 Frigidaire Refrigerator Screw
7	WCI G107080
8	WCI G164906-01
9	5304455649 Frigidaire Refrigerator Screw
10	WCI G162205-05
11	TUBE
12	WCI G166802
13	WCI G166803
14	WCI G164523
15	WCI G164575
16	WCI G185373
17	KNOB, DAMPER CONT.
18	WCI G169471
20	LINER - OVEN BOTTOM
22	LIGHT SHIELD-FREEZER
23	WCI G164654-01
25	218906802 Frigidaire Light Lamp Socket
26	RING, FAN ORIFICE
27	5304455650 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI G164571
31	WCI G185303
32	WCI G185302
33	G187559 Frigidaire Refrigerator Bushing
