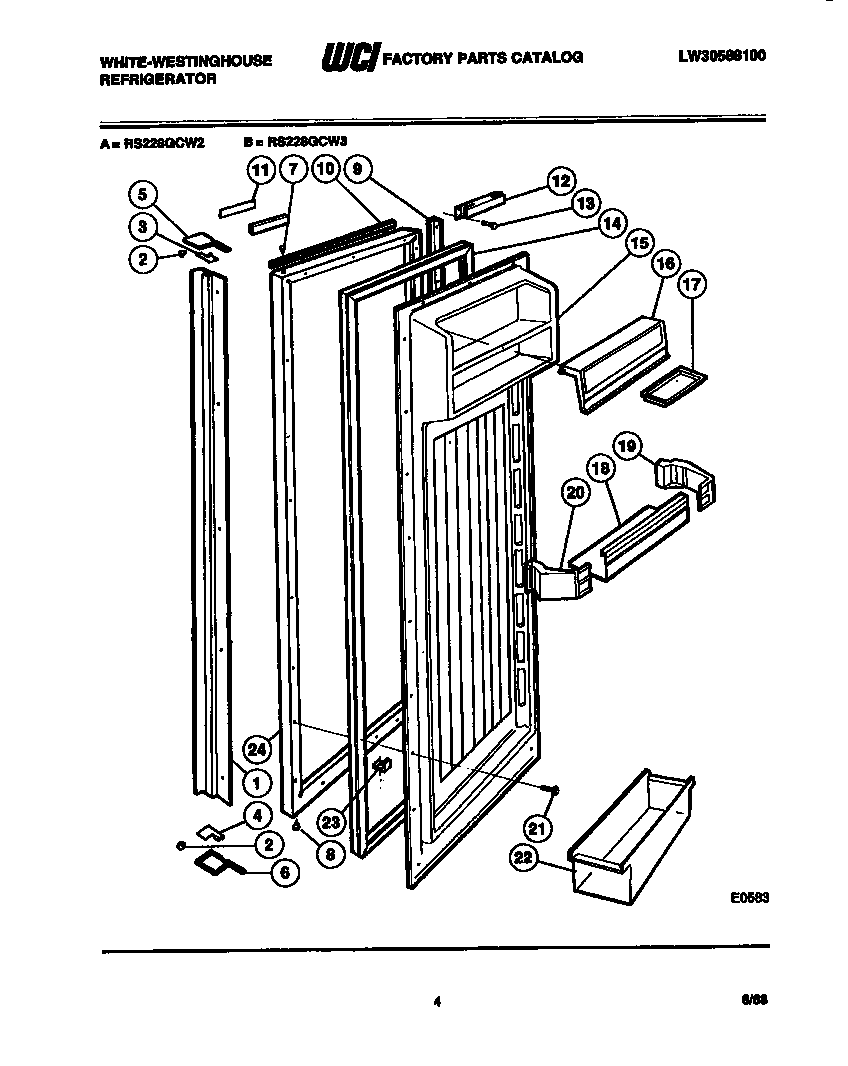

RS228GCH2 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
*97472	WCI G89643
1	WCI G177141-09
2	CLIP
3	TRIM, TOP
4	TRIM, BTM
5	CAP
6	CAP
7	WCI G183139
8	BEARING, HINGE (3)
9	WCI G180613-01
10	WCI G178328-04
11	WCI R304001
12	DOOR CLOSER
14	WCI G180551-02
15	WCI G179992-01
16	WCI G179976-01
17	5308000716 Frigidaire Refrigerator Dish
18	WCI G164109-18
19	END CAP RS (2)
20	END CAP LS (2)
21	218843801 Frigidaire Refrigerator Screw
22	CONTAINER-EGG
23	BUMPER-LIGHT SW.
24	WCI G180386-09
