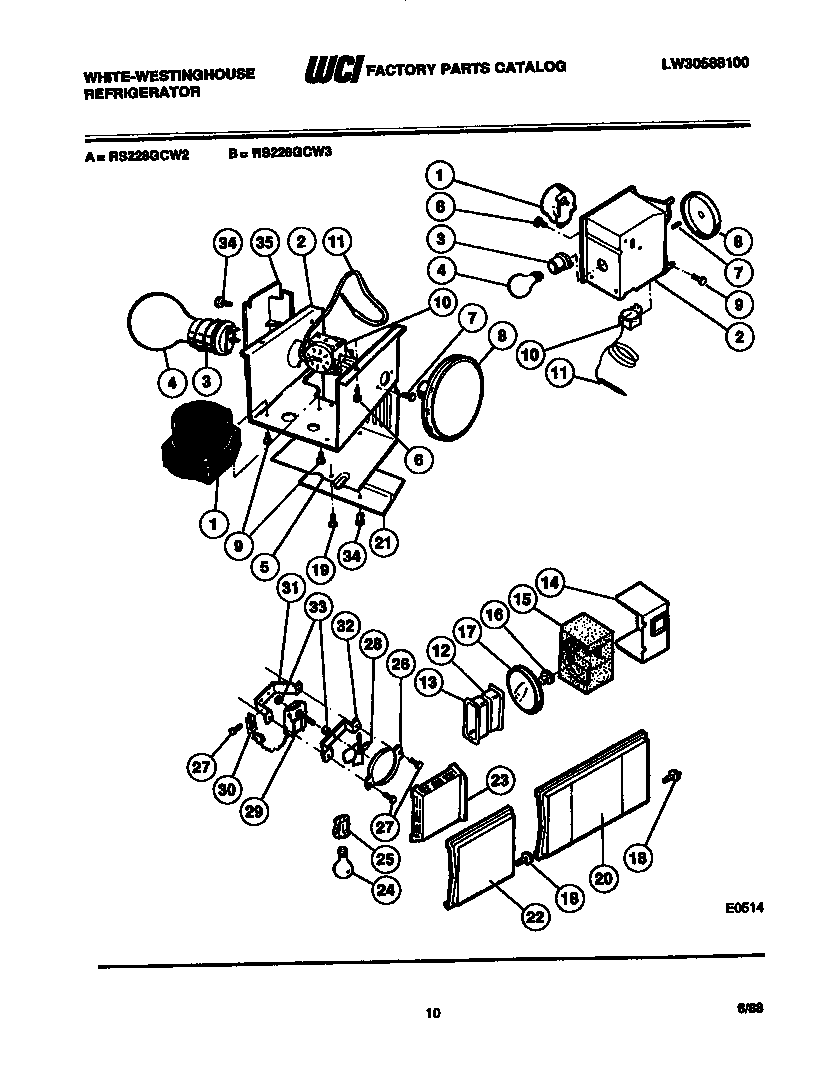

RS228GCV2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI G164788
3	SOCKET LIGHT
4	316538904 Frigidaire Oven Lamp Light
5	COVER CONT. BRACKET
6	5304455852 Frigidaire Refrigerator Screw
7	WCI G107080
8	WCI G164906-01
9	5304455649 Frigidaire Refrigerator Screw
10	WCI G162205-05
11	TUBE
12	WCI G166802
13	WCI G166803
14	WCI G164523
15	WCI G164575
16	WCI G185373
17	KNOB, DAMPER CONT.
18	WCI G169471
19	5308000039 Frigidaire Refrigerator Screw
20	WCI G169601-13
21	WCI G166068
22	LIGHT SHIELD-FREEZER
23	WCI G164654-01
25	218906802 Frigidaire Light Lamp Socket
26	RING, FAN ORIFICE
27	5304455650 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI G164571
31	WCI G185303
32	WCI G185302
33	G187559 Frigidaire Refrigerator Bushing
34	WCI G165545
35	WCI G165543
