RS229GCD3 11 – UNIT

RS229GCD3 11 – UNIT

Written by

in

RS229GCD3 11 – UNIT

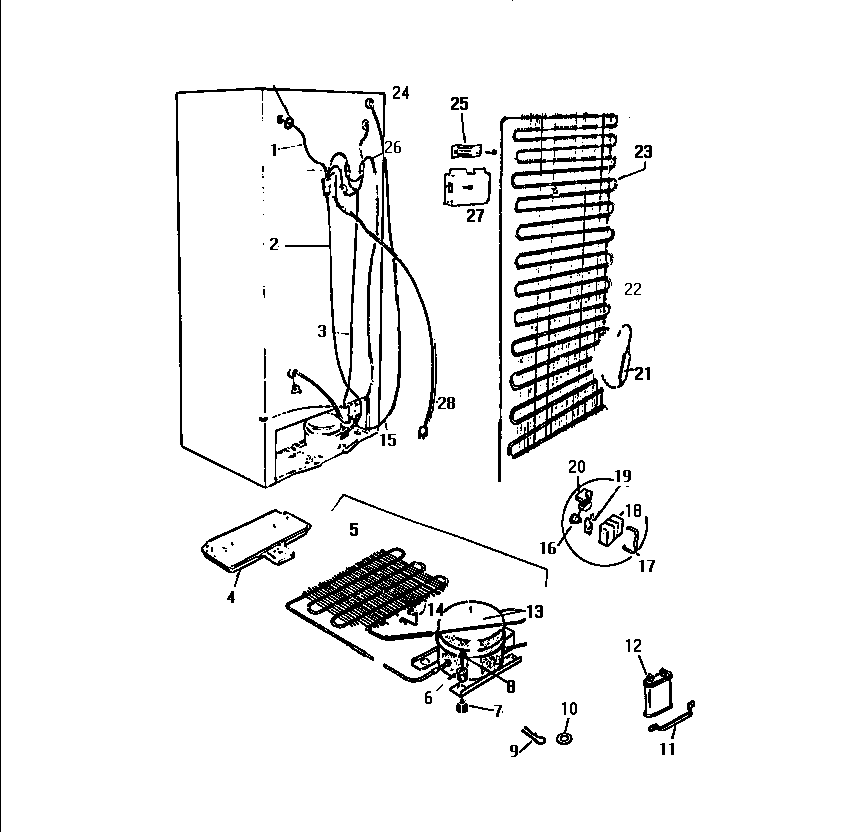

Products

PositionProduct
1WCI R900920
2WCI R900979
3WIRING HARNESS ICE & WATER LOWER WIRING FROM AUGER MTR,
4WCI G171125
5DEFROST PLATE
6SLEEVE COMP MTG (3)
7218513300 Frigidaire Refrigerator Compressor Mount Grommet
8SCREW – 1/4-20 (3) COMP. MTG.
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER, COMPRESSOR MOUNTING (4)
11STRAP-CAPACITOR
12WCI G188885-01
13COMPRESSOR WITH ELECTRICALS
15BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
16WCI G189028
175303006412 Frigidaire Refrigerator Cover Mounting Strap
19RETAINER
20WCI G182225-18
21DRIER-REGULAR
21AWCI R900125
22WCI G189379
23WCI G188597
24215456100 Frigidaire Refrigerator Water Inlet Tube
24AWCI G154156
25BRACKET, COND. MTG (4)
26WIRING HARNESS FILL VALVE TO ICEMAKER
27WCI G183584
28CORD, SERVICE
