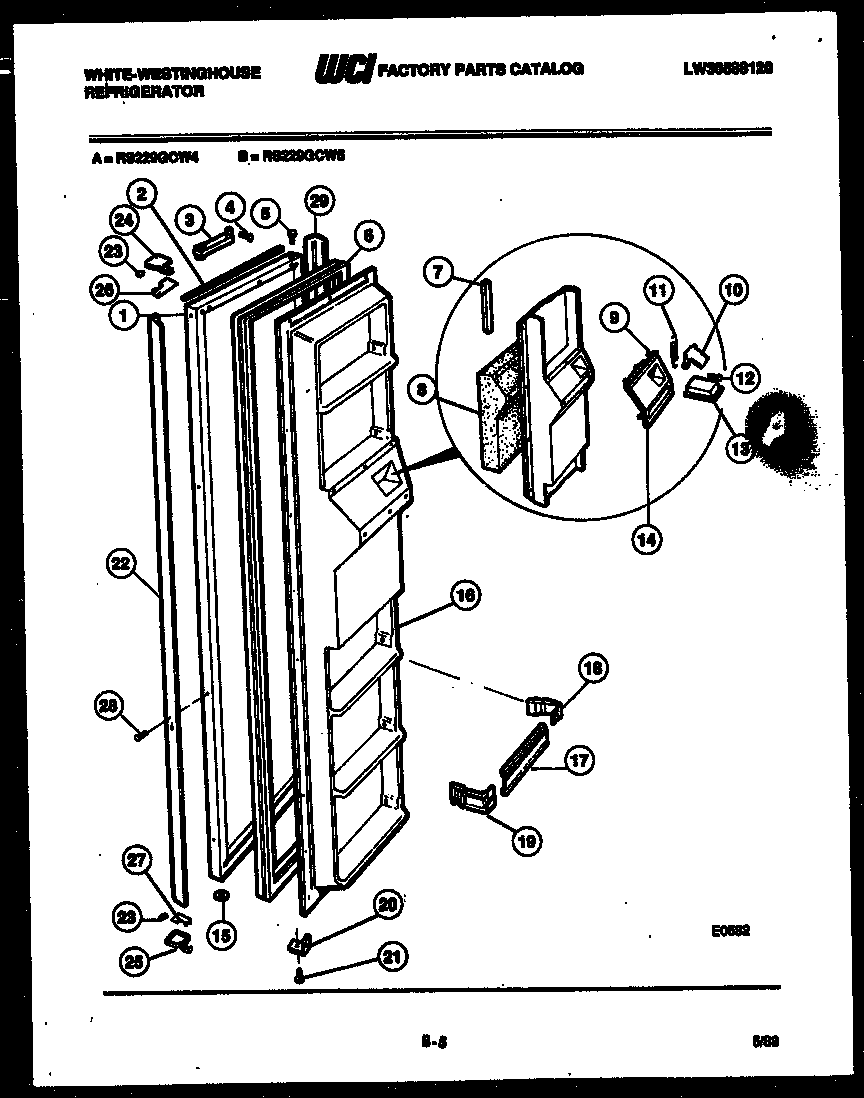

RS229GCD4 02 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI G199327-11
1A	WCI G152308-01
2	WCI G178328-06
3	DOOR CLOSER
4	WCI G169729
5	WCI G183139
6	WCI G180551-03
7	WCI G177720
8	INSULATION
9	WCI G179017
10	WCI G175040-03
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI G180637
14	WCI G181241-01
14A	PUSH NUT (6) (NON-ILLUSTRATED)
15	BUSHING-LWR HINGE
16	WCI G183176-01
17	WCI G490079-15
18	SUPPORT-RS (5)
19	SUPPORT-LS (5)
20	BUMPER-LIGHT SW.
21	5304455651 Frigidaire Refrigerator Screw
22	WCI G177141-09
23	CLIP
24	CAP
25	CAP
26	TRIM, TOP
27	TRIM, BTM
28	WCI G185566
29	WCI G180613-01
