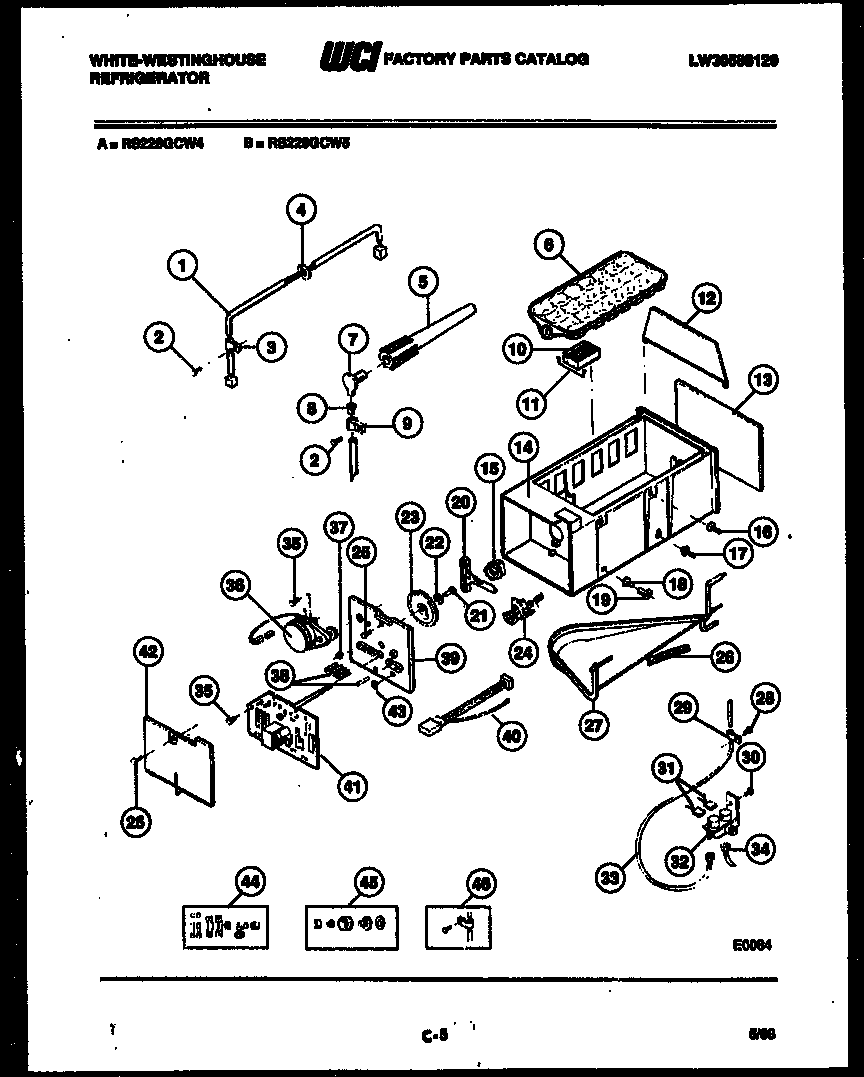

RS229GCD5 09 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1	WIRING HARNESS-ICE & WATER
3	CLAMP-TUBE (NON-ILLUSTRATED)
4	5303001147 Frigidaire Refrigerator Plug-Harness Hole
5	TUBE-FILLER EXTENSION
6	WCI G182507
7	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI G154156
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI G174479
11	RETAINER, INSULATOR
13	WCI 3017384
13A	WCI 3017383
13B	WCI 3017717
14A	WCI 3017382
14	WCI G187057-01
15	WCI G182487
16	WCI 3017391
17	WCI G182506
18	5304455846 Frigidaire Refrigerator Clamp
19	WCI G185464
20	GEAR RACK
21	WCI G174444
22	WASHER-CRANK SHAFT
23	WCI G174484
24	WCI 3017390
25	WCI G185567
26	WCI 3017392
27	WCI 3015044
28	5304455651 Frigidaire Refrigerator Screw
29	240396801 Frigidaire Refrigerator Tube Clamp
30	5308000039 Frigidaire Refrigerator Screw
32	WCI G189174
34	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
35	WCI G185562
36	MOTOR-ICE MAKER
37	NUT-HEX
38	FOLLOWER, CAM
39	PLATE
40	WCI G182859
41	PC BOARD
42	COVER AND LEVER ASSEMBLY
43	CLIP
44	WCI G99428
45	WCI G159415
