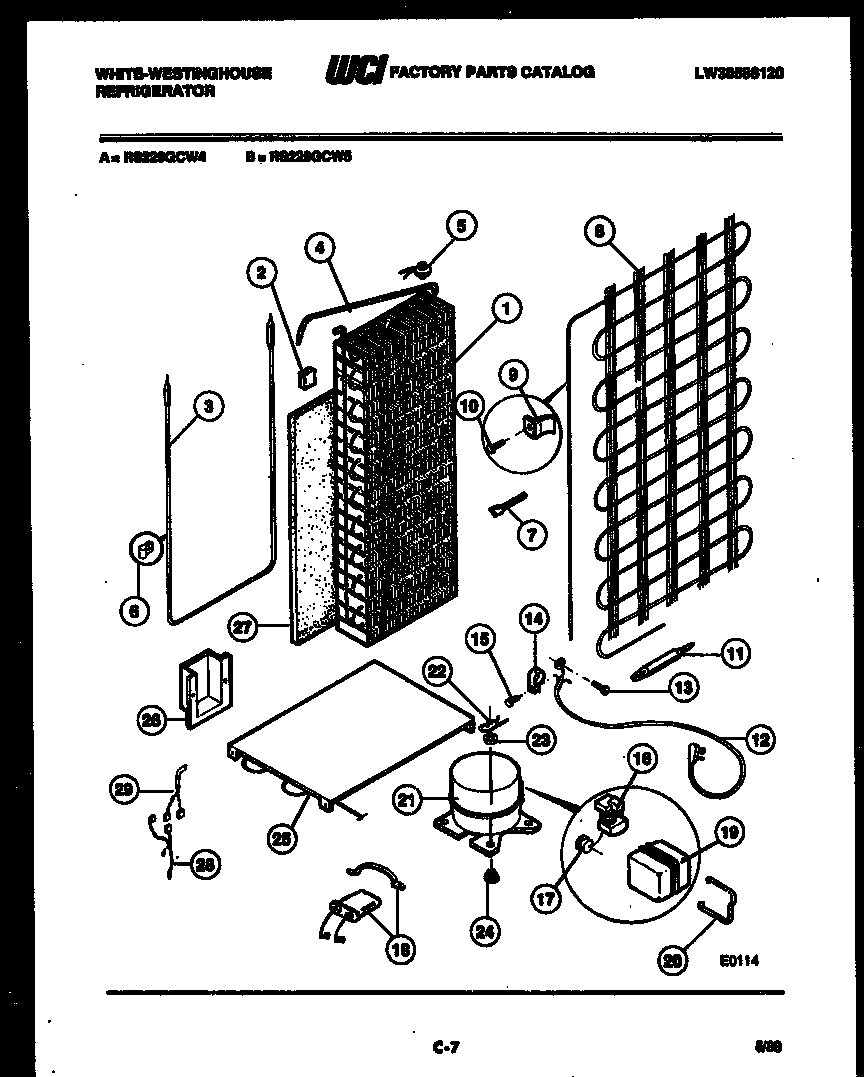

RS229GCD5 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*89632	WCI G189379
1	WCI G190222
2	WCI G169493
3	WCI G190223
4	WCI G189609
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI G167363
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI G188597
9	BRACKET, COND. MTG (4)
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	CORD, SERVICE
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	WCI G182225-18
17	WCI G189028
18A	STRAP-CAPACITOR
18	WCI G188885-01
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	COMPRESSOR WITH ELECTRICALS
22	CLIP, COMPRESSOR MOUNTING (4)
23	WASHER, COMPRESSOR MOUNTING (4)
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI G188596
25C	218843801 Frigidaire Refrigerator Screw
25B	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25A	WCI G171111
26	WCI G183584
27	WCI G169641
28	WIRING HARNESS-COMPR & LIGHTS
