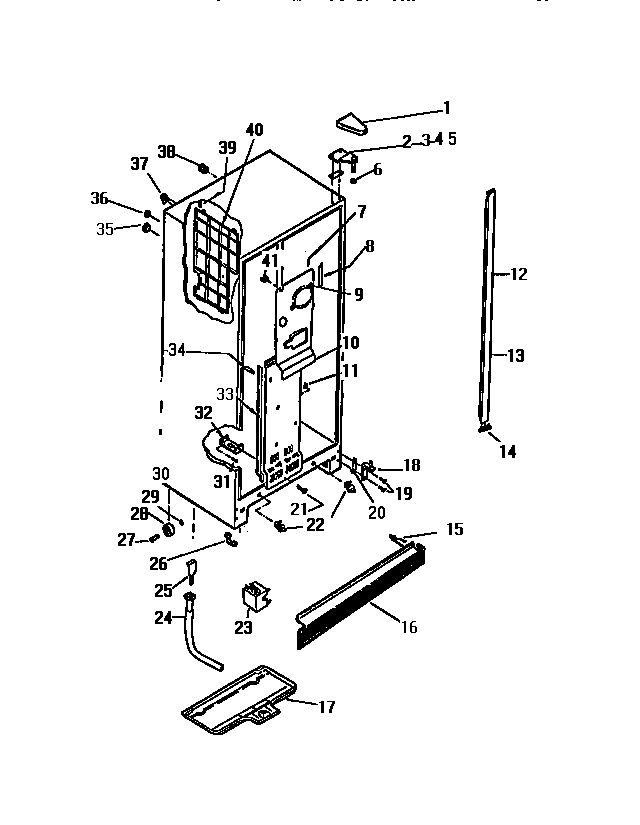

RS229GCF2 05 – CABINET

Products

Position	Product
1	COVER HINGE, COFFEE
2A	WCI G183716
2	HINGE-TOP RS
3	WCI G183861
5	241710601 Frigidaire Refrigerator Screw
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	WCI G182456
8	WCI G165233
9	NUT, ORIFICE (2)
10	COIL COVER-LOWER
11	WCI G162703
12	WCI G169297
12A	WCI G169100
13	MULLION-COFE
14	TRIM-MULLN-COFE
15	CLIP, GRILLE
16	WCI G174597-04
17	WCI G1711255
18	BRACKET-LOWER HINGE
19	SCREW – 1/4 X 1 (2)
20	SHIM, HINGE
21	WCI G184854
22	5303289051 Frigidaire Refrigerator Light Switch
23	COVER-BOTTOM HINGE
24	241957901 Frigidaire Refrigerator Tube-Drain
25	WCI G171173
26	WCI G177743
26A	NUT, INLET TO SOLENOID VALVE
27	WCI G162809
28	ROLLER (2)
29	NUT, DAMPER MOUNTING
30B	WCI G167582
30A	WCI G166801
30	WCI G166800
31	5304455650 Frigidaire Refrigerator Screw
32	WCI G158022
33	GASKET KIT – COIL COVER
34	WCI G169471
34A	WCI G170839
35	WCI G174733
36	WCI G174734
37	215456100 Frigidaire Refrigerator Water Inlet Tube
37A	5303001193 Frigidaire Refrigerator Clamp
37B	WCI G175439
38	TUBE, INSULATION (2)
39	SUPPORT
40	DIVIDER I.M.
41	WCI G163669
