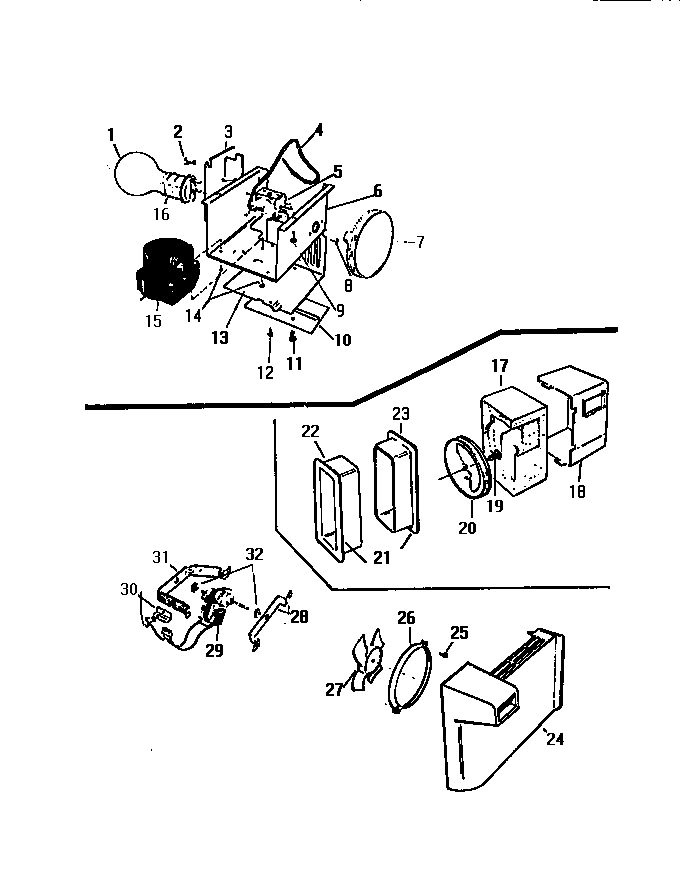

RS229GCF2 07 – CONTROL & FAN ASSEMBLIES

Products

Position	Product
1	WCI Q63749
3	WCI G165543
4	TUBE
5	WCI G162667-07
6	WCI G164788
7	WCI G164906-01
8	WCI G107080
9	5304455852 Frigidaire Refrigerator Screw
10	WCI G166068
11	WCI G165545
12	5308000039 Frigidaire Refrigerator Screw
13	COVER CONT. BRACKET
14	5304455649 Frigidaire Refrigerator Screw
15	215846604 Frigidaire Refrigerator Defrost Timer
16	SOCKET LIGHT
17	WCI G164575
18	WCI G164523
19	WCI G185373
20	KNOB, DAMPER CONT.
21	WCI G167582
22	WCI G166802
23	WCI G166803
24	WCI G181917-01
25	5304455650 Frigidaire Refrigerator Screw
26	RING, FAN ORIFICE
27	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
28	WCI G185302
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI G164571
31	WCI G185303
32	BUTTON, LINER
