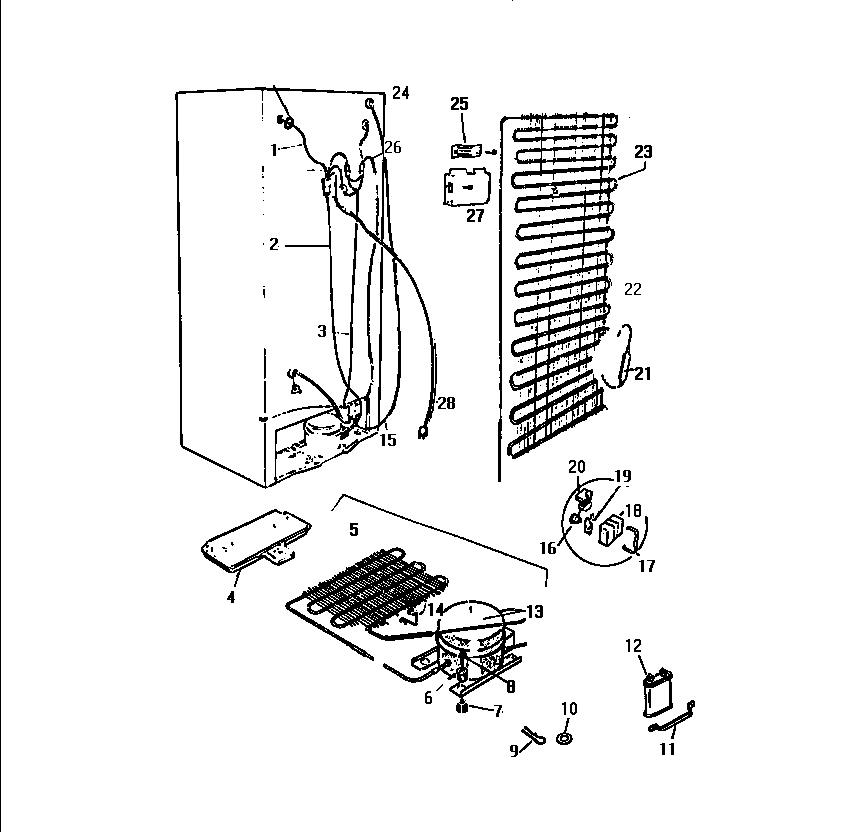

RS229GCF2 11 – UNIT

Products

Position	Product
1	WCI R900920
2	WCI R900979
3	WIRING HARNESS ICE & WATER LOWER WIRING FROM AUGER MTR,
4	WCI G171125
5	DEFROST PLATE
6	SLEEVE COMP MTG (3)
7	218513300 Frigidaire Refrigerator Compressor Mount Grommet
8	SCREW – 1/4-20 (3) COMP. MTG.
14	WCI C620104
15	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
16	WCI G152989
17	5303006412 Frigidaire Refrigerator Cover Mounting Strap
18	COVER
19	RETAINER
20	WCI G182225-05
21	DRIER-REGULAR
21A	WCI R900125
22	WCI G189379
23	WCI G169746
24A	WCI G154156
24	215456100 Frigidaire Refrigerator Water Inlet Tube
25	BRACKET, COND. MTG (4)
26	WIRING HARNESS FILL VALVE TO ICEMAKER
27	WCI G183584
28	CORD, SERVICE
