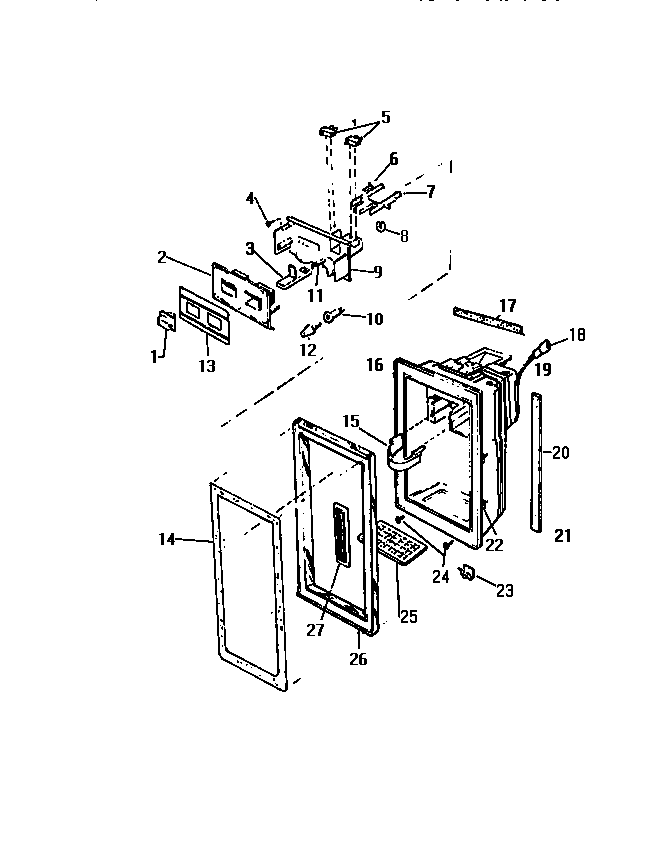

RS229GCF3 09 – ICE DOOR HOUSING

Products

Position	Product
*81166	WCI G185226
*81167	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	WCI G180649
2	WCI G182643-01
3	WCI G186063-01
4	WCI G185567
5	WCI G185542
6	WCI R900674
7	WCI R900859
8	WCI G174411
9	PLATE-SWITCH MTG
10	WCI G177729
11	SPRING-WTR ACTUATOR
12	WCI 5304506475
13	WCI G182654-01
14	WCI G182955-01
15	SKIRT
16	WCI G188308-02
17	WCI G189635
18	WCI G186533
19	WCI G182738
20	WCI G175246
21	WCI G189634
22	PUSH NUT (6) (NON-ILLUSTRATED)
22A	RETAINER
23	WCI G179964
24	SCREW-CLIP MTG (2)
25	WCI G182551-01
26	WCI G182518-06
27	WCI G182929
