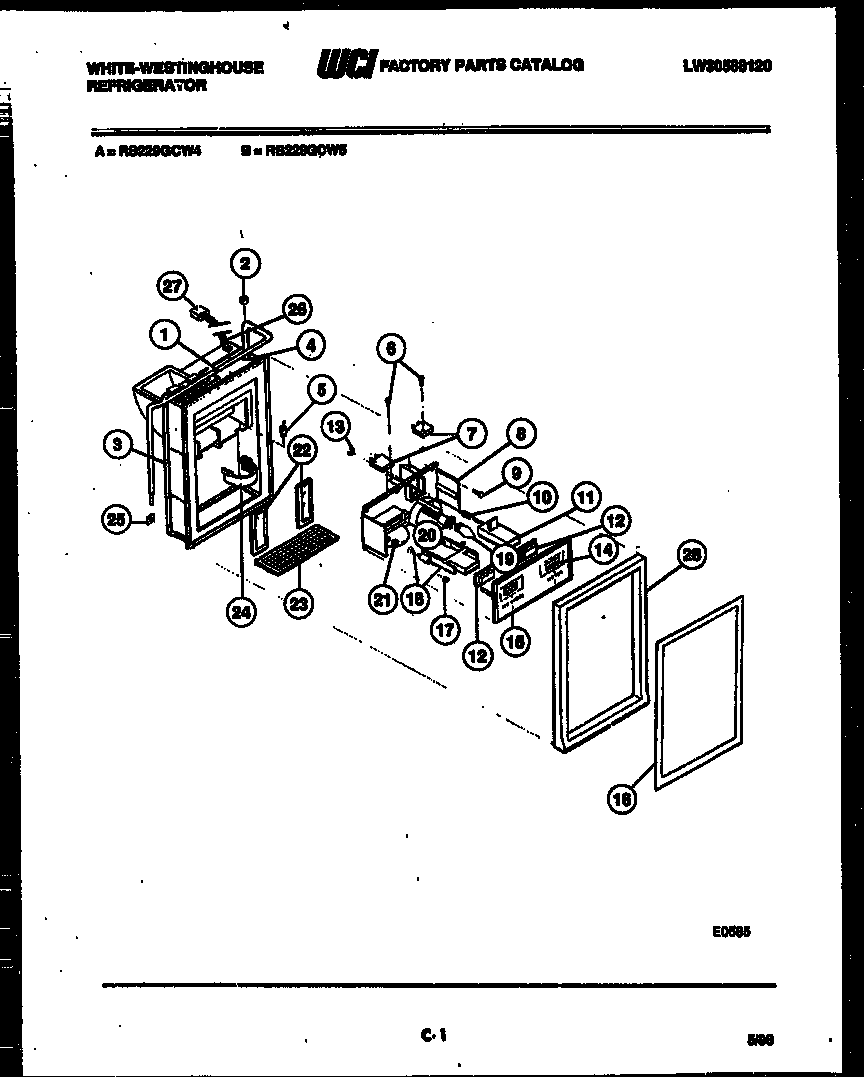

RS229GCF5 07 – ICE DOOR, DISPENSER AND WATER TANKS

RS229GCF5 07 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

RS229GCF5 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
1TUBE-WATER INLET AND PILOT ASSY
2WCI G175246
3WCI G182738
4WCI G188308-02
5WCI G179999
6WCI G177686
7WCI G185542
8PLATE-SWITCH MTG
9WCI G185567
10SPRING-WTR ACTUATOR
11WCI G185063-01
12WCI G187106-01
13WCI G174411
14WCI G182654-01
15WCI G182643-01
16WCI G182955-01
17WCI G174414
18WCI G177725
19WCI 5304506475
20WCI G177729
21WCI G177724
22WCI G182929
23WCI G182551-01
24SKIRT
25PUSH NUT (6) (NON-ILLUSTRATED)
26WCI G185226
27WCI G177742
27ADIODE KIT (NON-ILLUSTRATED)
28WCI G182518-05
