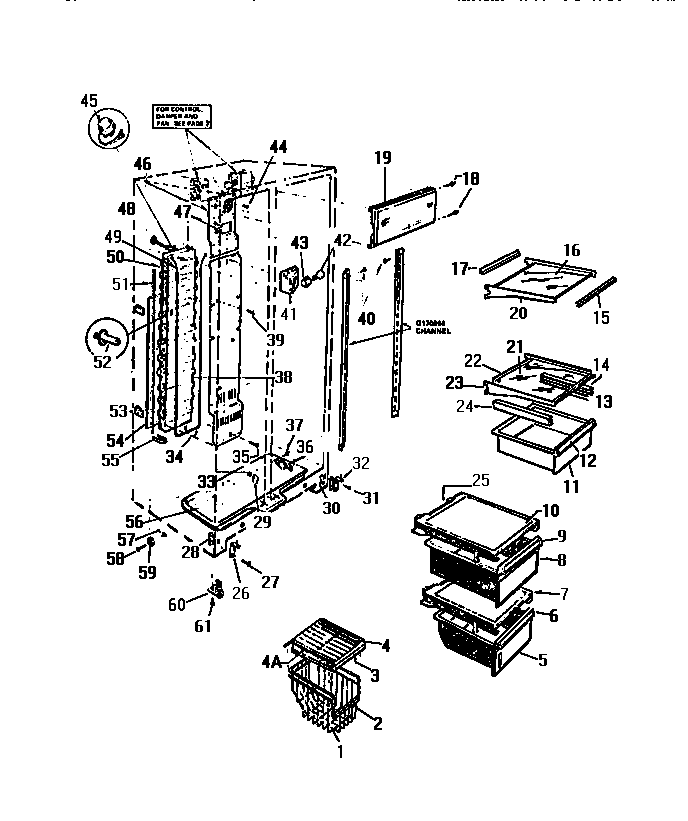

RS229GCH0 04 – EVAPORATOR, SHELVES, CRISPER PANS

Products

Position	Product
1	WCI G184748
2	WCI G165746-03
3A	TRIM-FRONT (NON-ILLUSTRATED)
3	SHELF-FREEZER (2)
4A	HANGER-BASKET LS
4	HANGER-BASKET RS
5	WCI G179710-01
7	COVER-PAN-LOWER
8	WCI G179709-01
10	COVER-PAN UPPER
11	WCI G179915-01
12	WCI G177343-06
14	HANGER, RH
15	TRIM
16	WCI G171654-31
18	WCI G165177
19	WCI G169601-13
20	WCI G178323-07
21	WCI G171654-32
22	TRIM-REAR (NON-ILLUSTRATED)
23	WCI G187217-03
24	HANGER, LH
25	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
26	HINGE-BOTTOM LS (NON-ILLUSTRATED)
29	FERRULE, INNER
29A	FERRULE, OUTER
29B	WCI G167582
30	WCI G141673
31	SCREW - 1/4 X 1 (2)
32	BRACKET-LOWER HINGE
32C	NUT, SPEED (2)
32B	WCI G142361
32A	SHIM, HINGE
33	WCI G163952
34	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
35	WCI G184851
36	WCI G164912-03
37	5304455650 Frigidaire Refrigerator Screw
38	COIL COVER-LOWER
40	5304455852 Frigidaire Refrigerator Screw
41	BOX, LIGHT
42	LIGHT BULB
43	218906802 Frigidaire Light Lamp Socket
45	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
46	WCI G182456
47	GASKET
48	HEAT, EXCHANGE
49	WCI G175351
50	EVAPORATOR
51	GASKET KIT - COIL COVER
52B	WCI G170839
52	WCI G169471
53	WCI G169493
54	WCI G169641
55	WCI G167363
56	WCI G171125
57	NUT, DAMPER MOUNTING
58	WCI G162809
59	ROLLER (2)
60	ROLLER ASSY (2)
61	BOLT, HOUSING TO FRONT RAIL (2)
