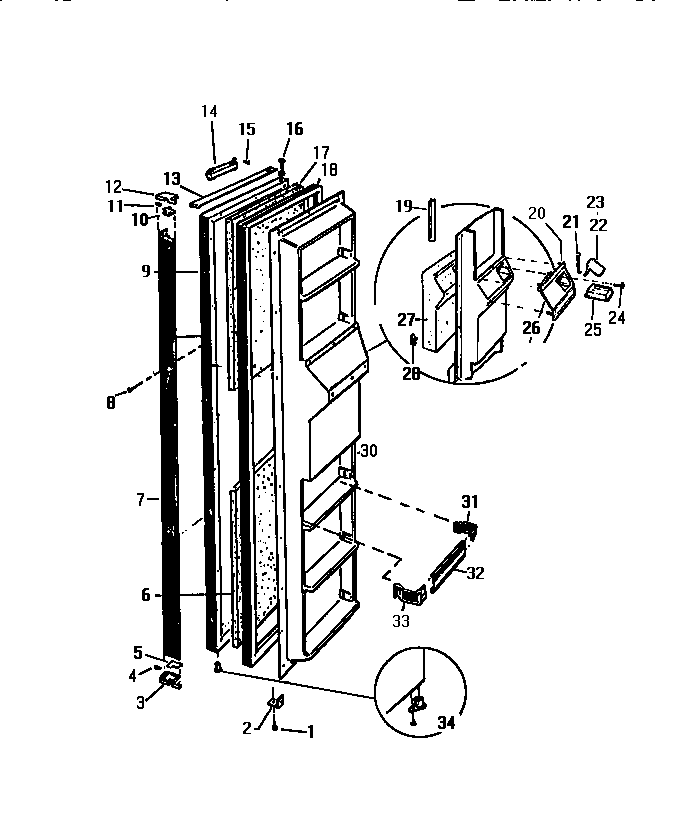

RS229GCV2 02 – FREEZER DOOR

Products

Position	Product
*81160	TAPE, DBLE SIDE
*81162	WCI G180613-01
*81161	WCI G185226
2	BUMPER-LIGHT SW.
3	CAP
3	BUSHING-LWR HINGE
5	TRIM, BTM
6	INSULATION LOWER
7	WCI G177141-09
7A	WCI R900621
8	WCI G185566
9	WCI R188326-08
10	TRIM, TOP
11	CLIP
12	CAP
13	WCI R900671
14	WCI Q161119
16A	BEARING, HINGE (3)
16	WCI G183139
17	INSULATION, UPPER
18	WCI G180551-03
19	WCI G177720
20	WCI G179017
21	SPRING-FLIPPER
22	WCI G177742
23	WCI G175040-03
24	5304455650 Frigidaire Refrigerator Screw
25	WCI G180637
26	WCI G181241-01
27	INSULATION
28	RETAINER
28A	PUSH NUT (6) (NON-ILLUSTRATED)
29A	218843801 Frigidaire Refrigerator Screw
29	WCI G183176-01
30	SUPPORT-RS (5)
31	WCI G490079-15
32	SUPPORT-LS (5)
