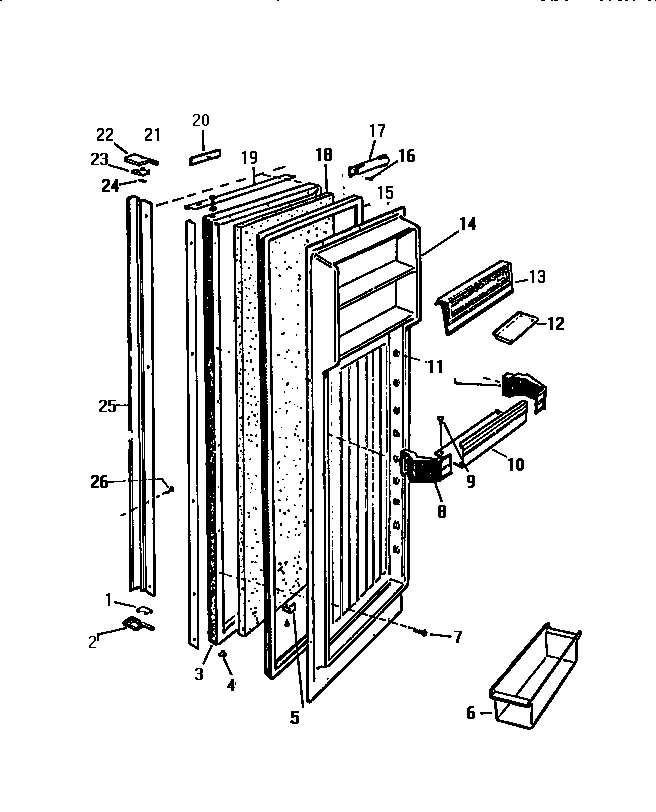

RS229GCV2 03 – REFRIGERATOR DOOR

Products

Position	Product
*81163	TAPE, DBLE SIDE
*81164	WCI G180613-01
1	TRIM, BTM
2	CAP
3	WCI 4678377A02
4	BEARING, HINGE (3)
5	BUMPER-LIGHT SW.
6	CONTAINER-EGG
8	END CAP LS (2)
9A	WCI G167115
9	WCI G171408
10	WCI G164109-18
11	END CAP RS (2)
12	5308000716 Frigidaire Refrigerator Dish
13	WCI G179976-01
14	WCI G179992-01
15	WCI G180651-02
16	218843801 Frigidaire Refrigerator Screw
17	DOOR CLOSER
18B	FIBERGLASS 34``X48``X11/2 `` TH
18A	FIBERGLASS INSULATION 34``X48``X1``TH
18	FIBERGLASS INSULATION 34``X48``X1/2`` TH
19	WCI R900869
20	WCI R304001
21	WCI G183139
22	CAP
23	TRIM, TOP
24	CLIP
25A	WCI R900621
25	WCI G177141-09
26	WCI G185566
