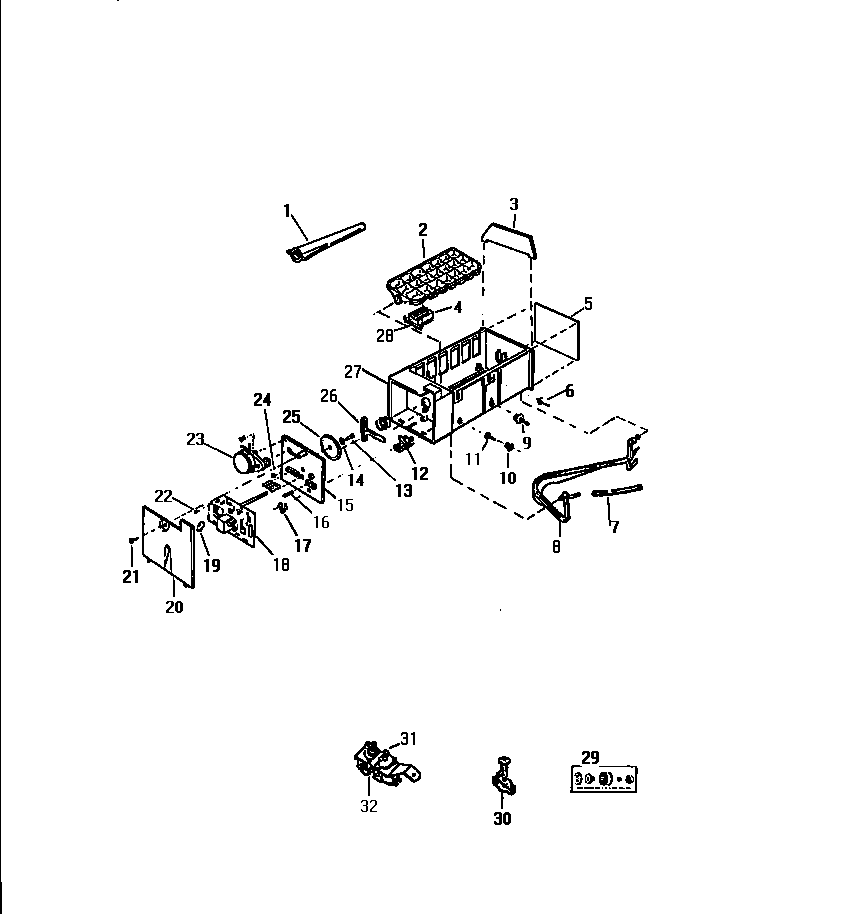

RS229GCW1 10 – ICE MAKER

Products

Position	Product
*81165	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	TUBE-FILLER EXTENSION
2	WCI G182507
3	WCI G182833
4	WCI G174479
5	WCI G182783-02
6	WCI G186383
7	SPRING
8	ARM
9	WCI R182506
10	WCI G185464
11	WCI R186382
12	CAM
13	WCI G174444
14	WASHER-CRANK SHAFT
15	PLATE
16	FOLLOWER, CAM
17	CLIP
18A	WCI G182859
18	PC BOARD
19	WCI G182408
20	COVER
21	WCI G185567
22	WCI G185562
23	WCI G174506
24	NUT-HEX
25	WCI G174484
26A	WCI G182487
26B	GEAR RACK
27	WCI G187057-01
28	RETAINER, INSULATOR
29	WCI G159415
30	VALVE
31	NUT, INLET TO SOLENOID VALVE
32	VALVE, WATER
