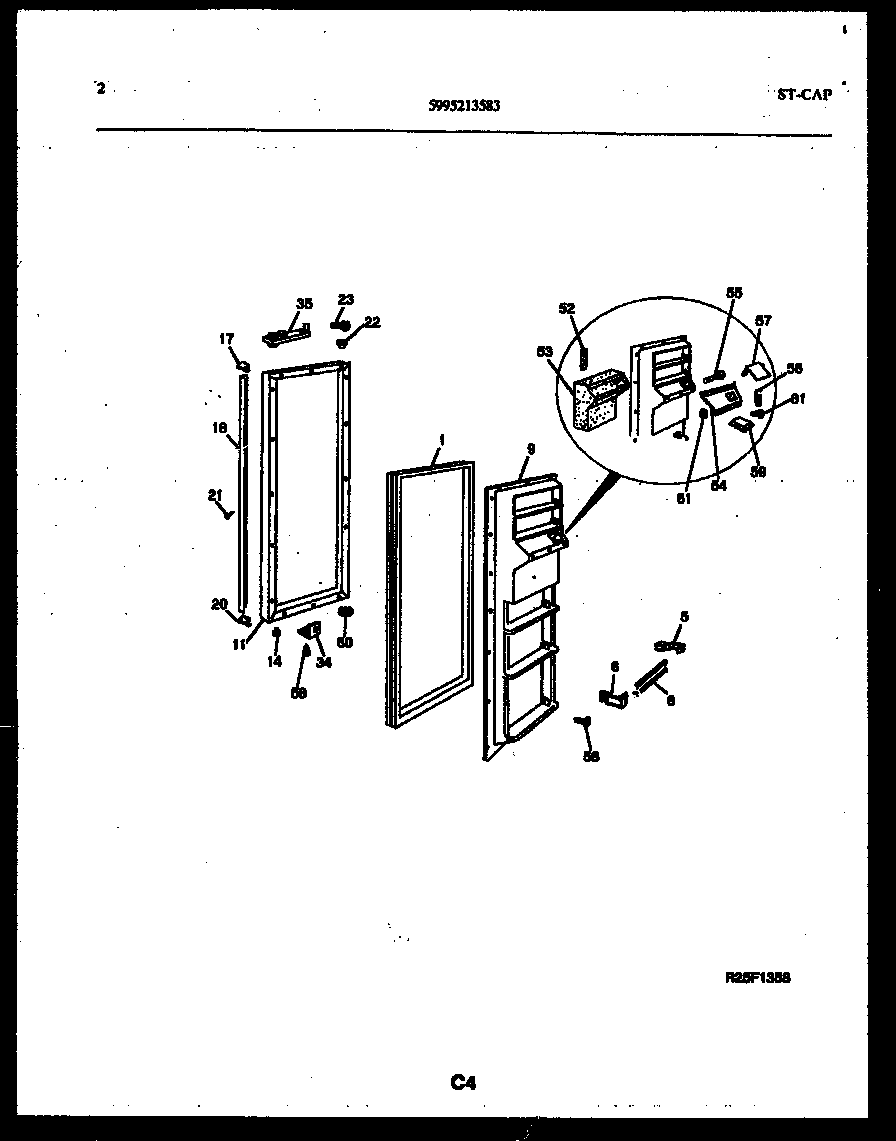

RS229MCD3 02 – FREEZER DOOR PARTS

RS229MCD3 02 – FREEZER DOOR PARTS

Written by

in

RS229MCD3 02 – FREEZER DOOR PARTS

Products

PositionProduct
*57274WCI 5303208843
*57274INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303200832
5SUPPORT RS (5)
6SUPPORT LS (5)
8WCI 5303208979
9WCI 5303280664
11WCI 5303917037
14WCI 5315230801
17AWCI 5300179271
17WCI 5300177143
18AWCI 5300177144
18WCI 5303279715
20WCI 5300177142
20AWCI 5300179270
21WCI 5308011745
22WCI 5303001022
23WCI 5303001020
34WCI 5308000790
35WCI 5303200272
52WCI 5303001046
53WCI 5308015556
54TRIM COVER-DOOR PANEL
55WCI 5303001048
56SPRING-FLIPPER
57WCI 5303205848
585304455651 Frigidaire Refrigerator Screw
59WCI 5303211300
60BUSHING-LOWER HINGE
61NUT, SELF-THREADING, 1/8
815304455650 Frigidaire Refrigerator Screw
