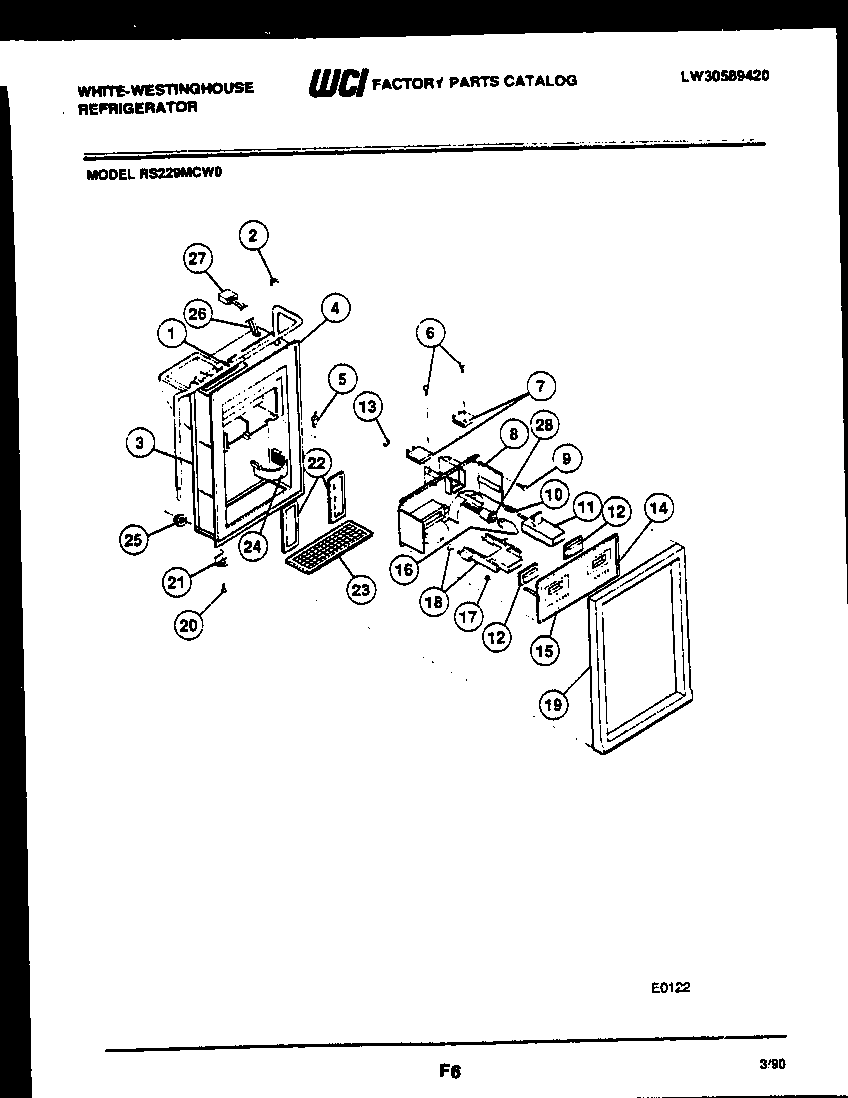

RS229MCF0 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
*28709	WCI 5303001074
*28709	WCI 5318653301
1	TUBE-WATER INLET & PILOT ASSY
2	WCI 5303001066
3	WCI 5308015588
4	WCI 3202406
5	WCI 5308010328
6	SCREW (4)
7	WCI 5303001078
8	PLATE-SWITCH MTG
9	SCREW (4)
10	SPRING-WATER ACTUATOR
11	WCI 5303001077
12	BUTTON-ICE
12A	LABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
13	WCI 5302832214
14	WCI 5303208251
15	FRONT PANEL
16	WCI 5304506475
17	WCI 5303001081
18	ACTUATOR & CUP ASSY-ICE
19	WCI 5303205853
19A	WCI 5303208870
20	WCI 5308010330
21	WCI 5300179966
22	PAD-FILL (2)
23	WCI 5303001091
24	WCI 5318000402
25	NUT, SELF-THREADING, 1/8
26	WCI 5303001082
27	PLUG-HARNESS BOTTOM
28	SOCKET-LIGHT BULB
