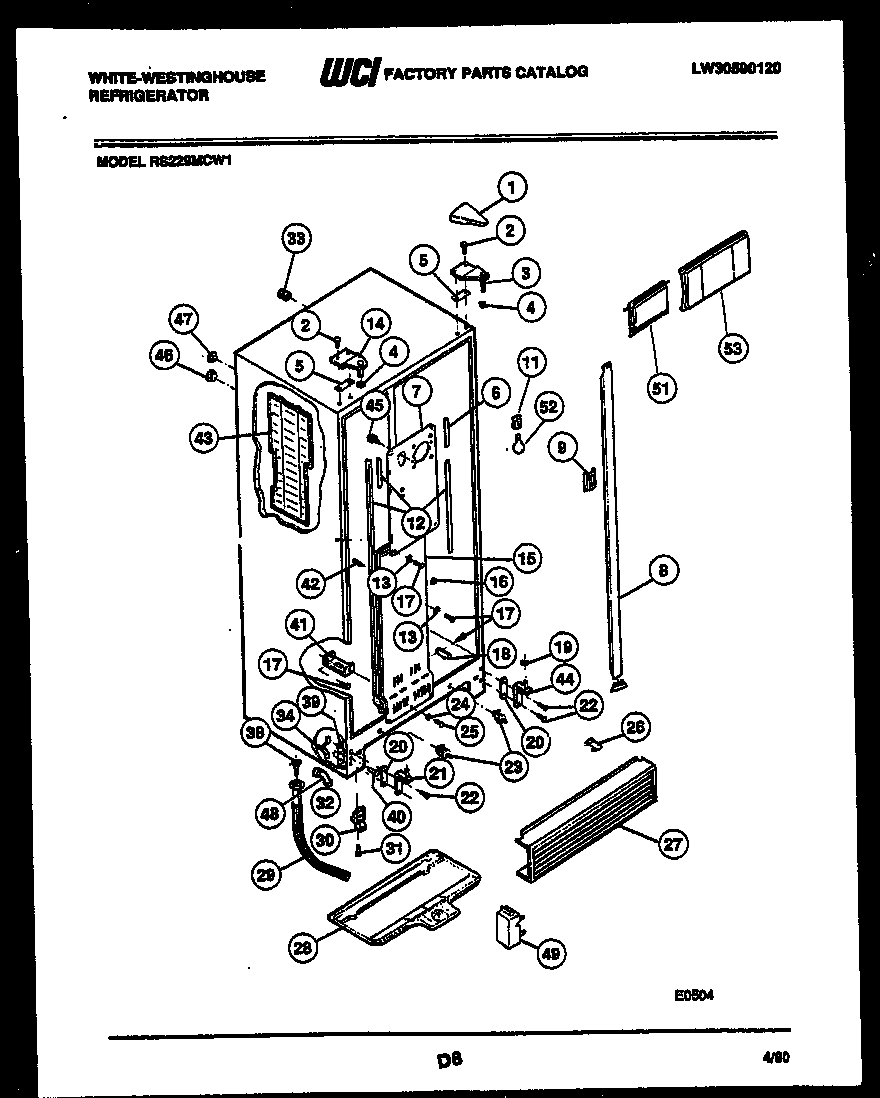

RS229MCF1 04 – CABINET PARTS

Products

Position	Product
*28553	WCI 5303001288
*28553	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*28553	WCI 5303001213
1	WCI 5303001666
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WCI 5308000186
5	SHIM – UPPER HINGE
6	WCI 5303001219
7	COVER-COIL UPPER
7A	NUT-SPEED (2)
8	WCI 5303916447
9	WCI 5300169100
9A	WCI 5303001281
11A	WCI 08015577
11	218906802 Frigidaire Light Lamp Socket
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
14	WCI 5303001062
15	WCI 5308017823
15A	WCI 5303203044
16	WCI 5303001231
17	5304455650 Frigidaire Refrigerator Screw
18	WCI 5308017447
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM LS
21A	WCI 5308010374
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23A	CLIP-CABLE
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP, GRILLE (2)
27	WCI 5317459704
28	WCI 5303001026
29	241957901 Frigidaire Refrigerator Tube-Drain
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43A	SUPPORT-ICE ACCESS DR
43	DIVIDER-ICEMAKER
43B	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
44	HINGE-BOTTOM
45	SUPPORT-COIL COVER
46	WCI 5303001286
47	WCI 5303001287
48	WCI 5308010289
48A	NUT, 7/16 X 20, NYLON
49	COVER-BOTTOM HINGE
49B	PUSH NUT-SCREW
51	WCI G182527-01
52	316538904 Frigidaire Oven Lamp Light
53	WCI 5303207095
