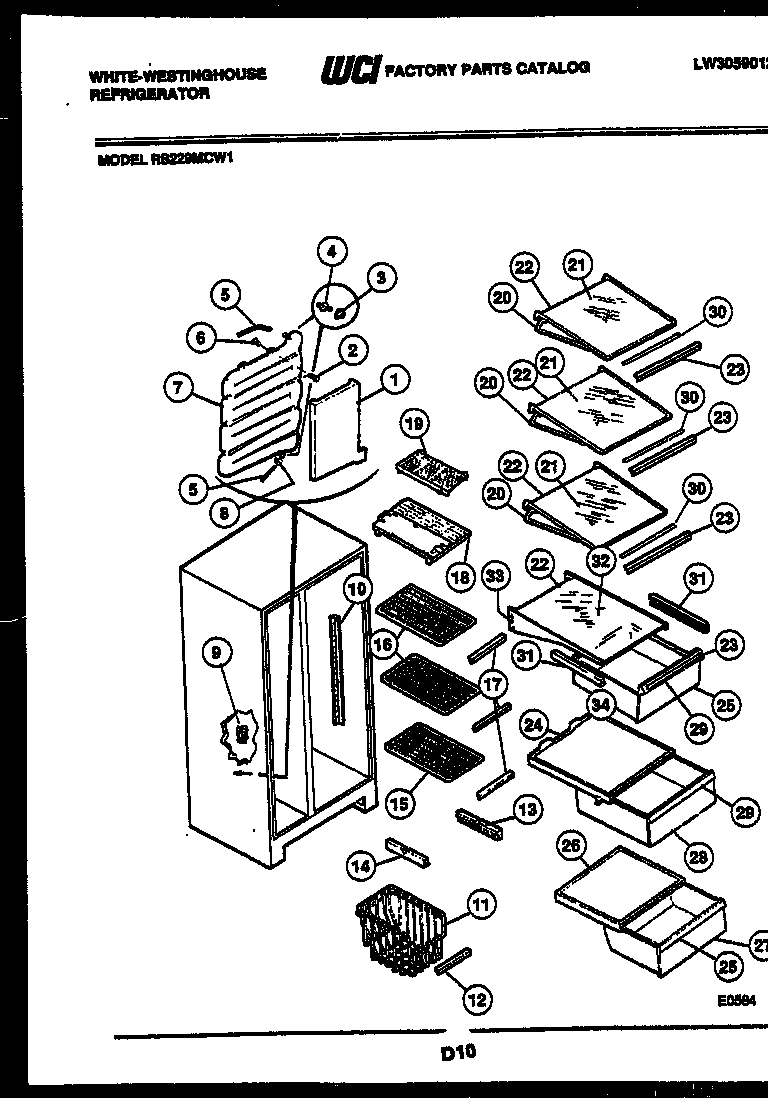

RS229MCH1 05 – SHELVES AND SUPPORTS

RS229MCH1 05 – SHELVES AND SUPPORTS

Written by

in

RS229MCH1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*28558WCI 5303209783
*28558RACK – HANGING – EGG
*285595304509705 Frigidaire Refrigerator Grommet
*28559CLIP, SHELF (8)
1WCI 5308010332
1A5304455650 Frigidaire Refrigerator Screw
2131420300 Frigidaire Screw
3WCI 5308015613
4CONNECTOR – TUBE
55308010366 Frigidaire Refrigerator P1-Water Inlet Tube
6SUPPORT-TANK (3)
7WATER TANK
8CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
9WCI 3201957
10A5304455852 Frigidaire Refrigerator Screw
10CHANNEL-SHELF MTG (2)
11WCI 5308017594
12WCI 5303207079
13WCI 5303001098
14WCI 5303001099
15WCI 08000908
16SHELF-FREEZER (2)
17TRIM-SHELF (3)
18ALABEL-SHELF (NON-ILLUSTRATED)
18WCI 5308015608
19ALABEL-SHELF (NON-ILLUSTRATED)
19WCI 5303017212
20FRAME-SHELF (3)
21WCI 5303209779
22WCI 5303209778
23WCI 5303207081
24COVER-CRISPER, MIDDLE
24AGASKET-CRISPER COVER
25WCI 5303207092
26WCI 5316972401
27WCI 5303207078
28WCI 5303207077
29WCI 5303207076
31AWCI 5303209748
31WCI 5303209749
31BWCI 08014528
32AWCI 3204640
32WCI 5303209780
33WCI 5303209747
34RETAINER-GLASS (3) (NON-ILLUSTRATED)
