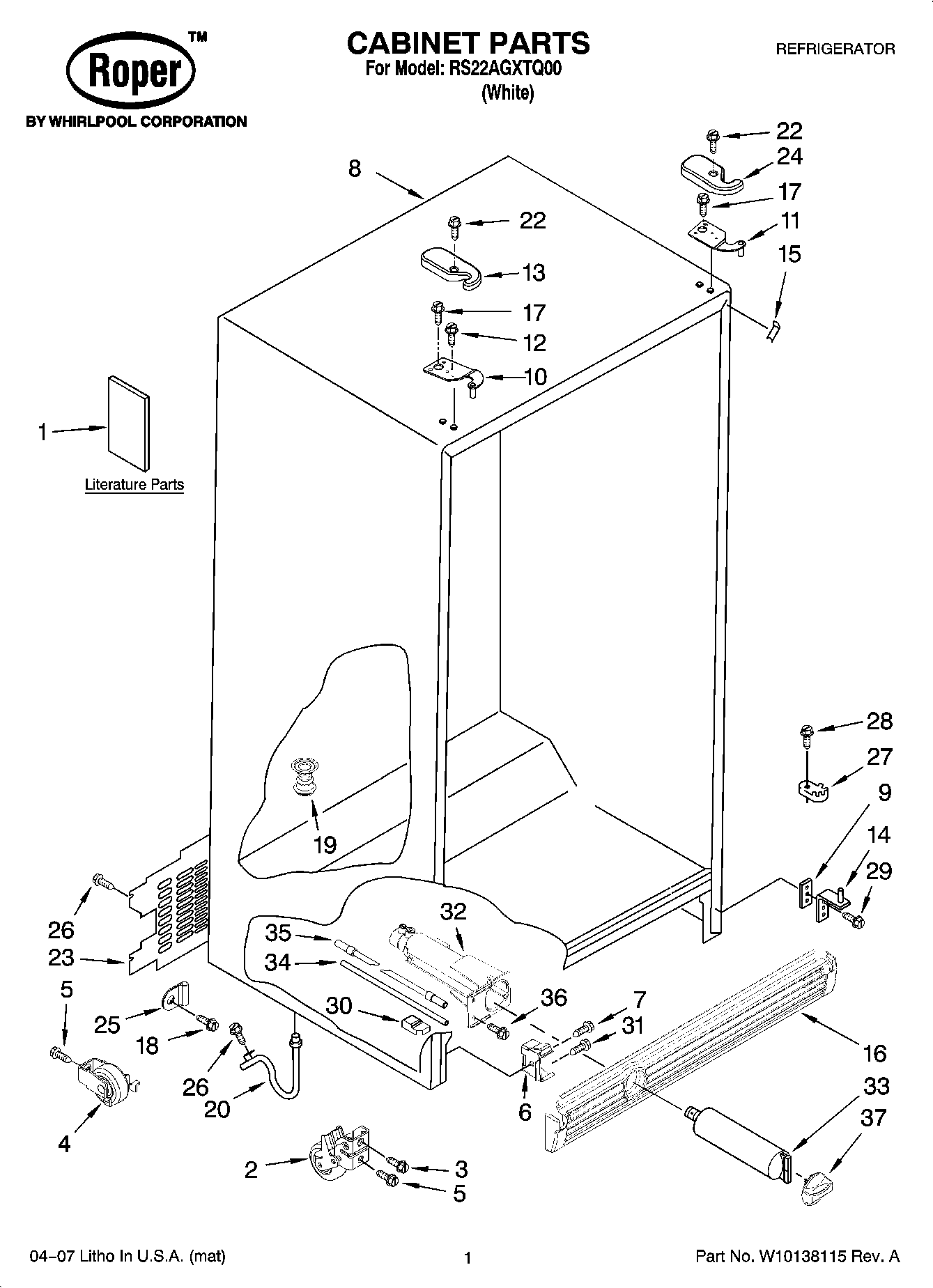

RS22AGXTQ00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Guide
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	Cabinet, (Not A Serviceable Part)
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203407W Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (White)
16	W10802713 Whirlpool Refrigerator Grille
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	Extension Tube
22	WP8281227 Whirlpool Screw
23	WP2188756 Whirlpool Refrigerator Unit Cover
24	WP2203408W Whirlpool Refrigerator Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP489497 Whirlpool Screw
30	Block, Housing Support
31	WP489128 Whirlpool Refrigerator Screw
32	WP2186443 Whirlpool Water Filter Housing
33	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	WP489500 Whirlpool Refrigerator Screw
37	WP2186494W Whirlpool Water Filter Cap
