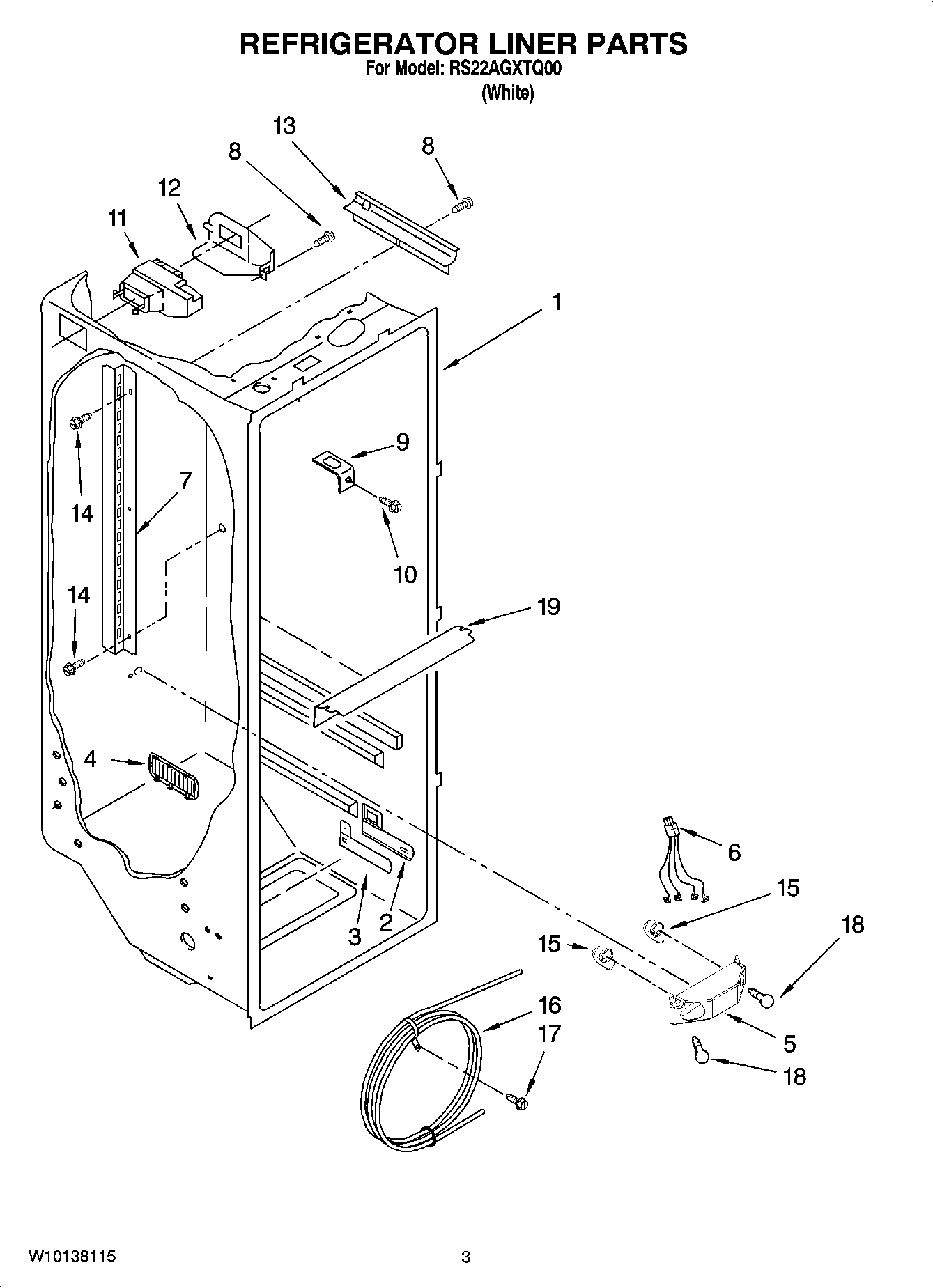

RS22AGXTQ00 02 – REFRIGERATOR LINER PARTS

RS22AGXTQ00 02 – REFRIGERATOR LINER PARTS

Written by

in

RS22AGXTQ00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
62311637 Whirlpool Refrigerator Wire Harness
7Shelf Ladder
8W10759522 Whirlpool Screw
9WP2256085 Whirlpool Refrigerator Retainer
10WP488488 Whirlpool Refrigerator Screw
11WPW10151374 Whirlpool Refrigerator Diffuser
122152019 Whirlpool Refrigerator Cover
132150331 Whirlpool Refrigerator Wire Cover
14WP489478 Whirlpool Refrigerator Screw
154387478 Whirlpool Refrigerator Light Socket
16WP2256126 Whirlpool Refrigerator Reservoir
17Screw (2)
18RANGE ONLY 40W 120V APPL BULB
19Light Lens
