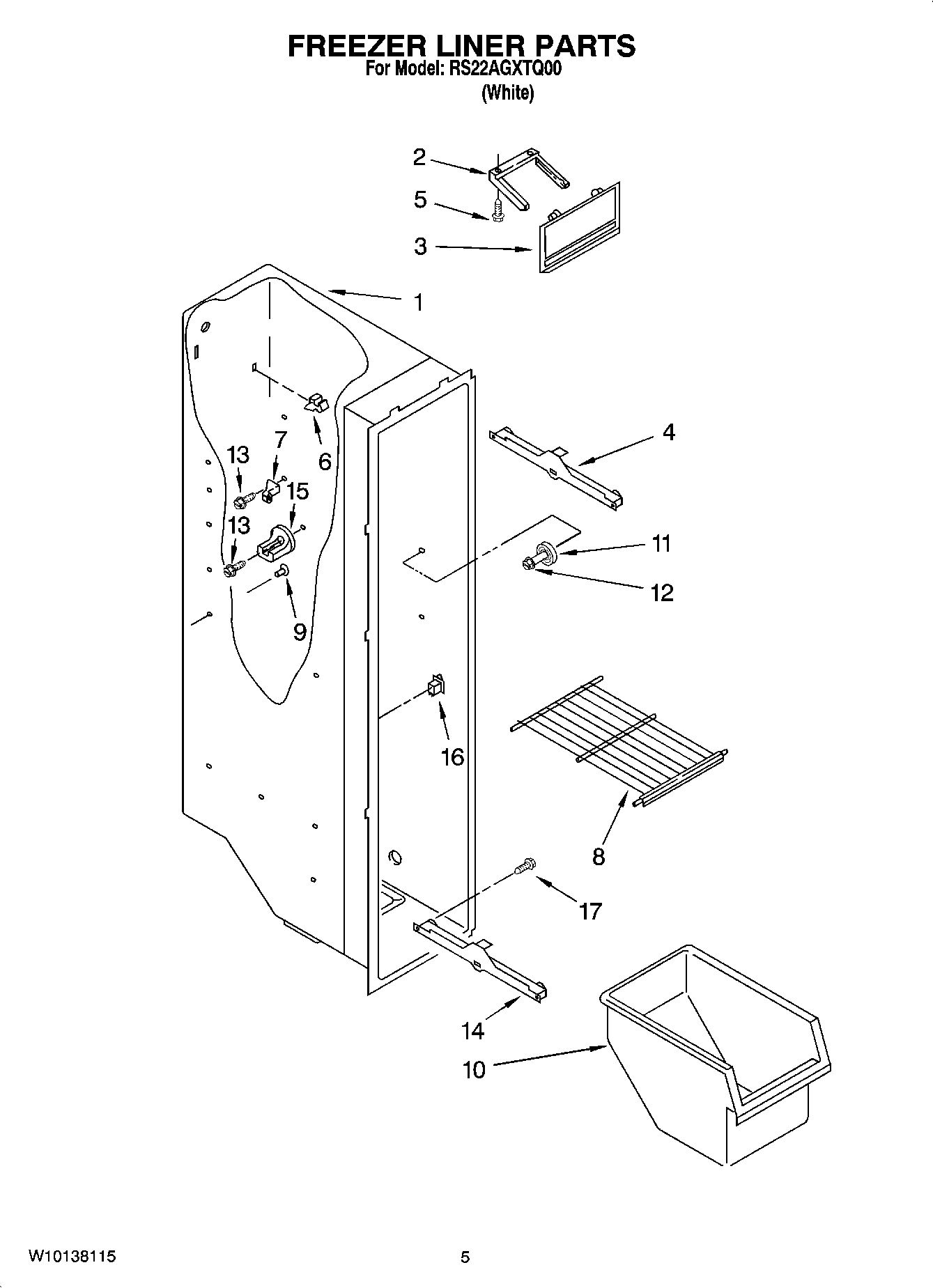

RS22AGXTQ00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4W10845585 Whirlpool Refrigerator Track
4W10845583 Whirlpool Refrigerator Track
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8WP2174249K Whirlpool Refrigerator Wire Shelf
9Grommet
10Bin, Freezer
11WP2196483 Whirlpool Refrigerator Shelf Stud
12WP3400806 Whirlpool Screw
13W10142289 Whirlpool Air Conditioner Screw
14WP2261449 Whirlpool Refrigerator Track
14Slide, Basket (Left Side)
15Stud, Rear
16W11457217 Whirlpool Refrigerator Rocker Switch Combination
17718257 Whirlpool Dishwasher Screw
