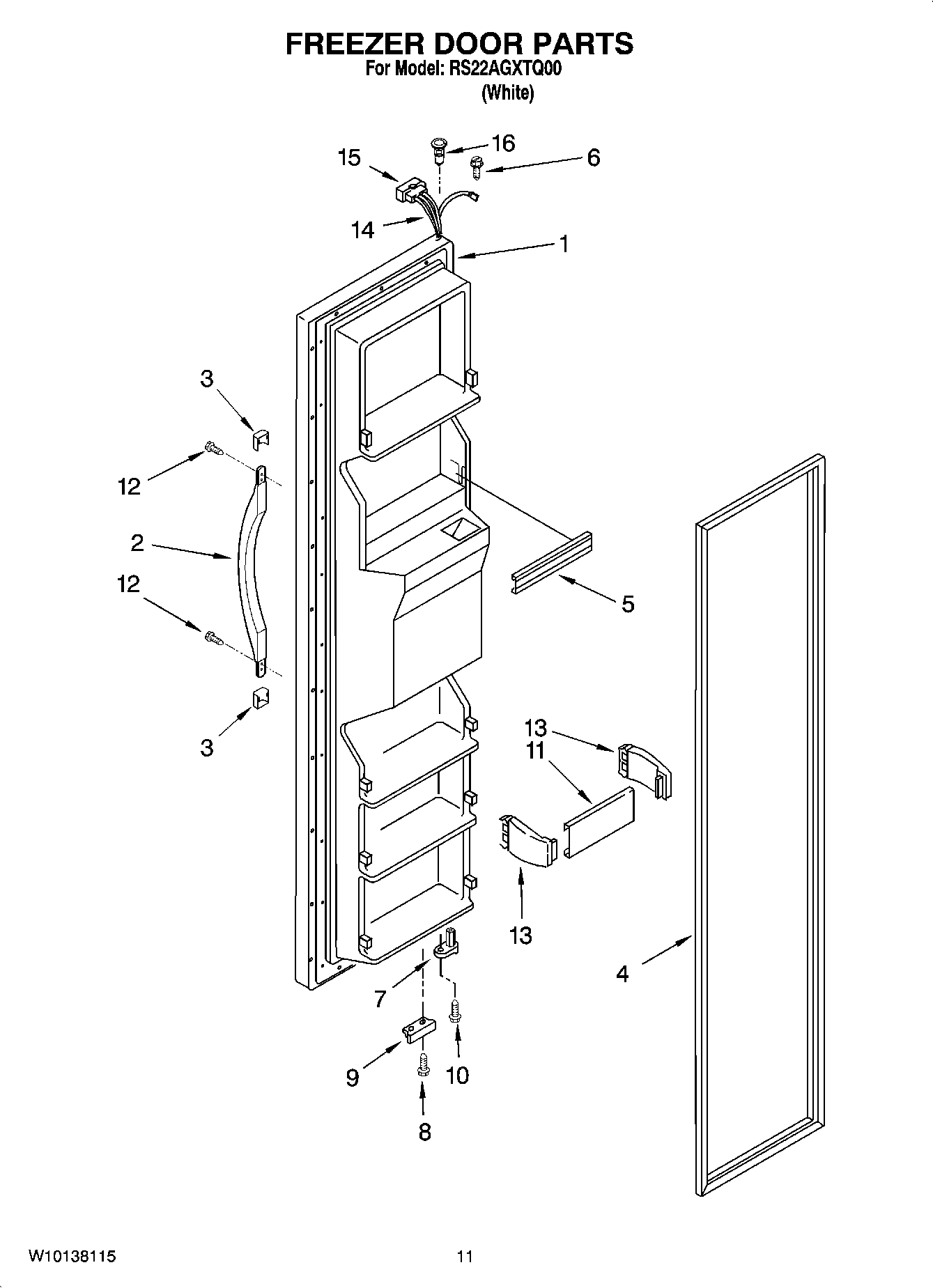

RS22AGXTQ00 07 – FREEZER DOOR PARTS

RS22AGXTQ00 07 – FREEZER DOOR PARTS

Written by

in

RS22AGXTQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (White (Includes Item 6 And Dispenser Front Parts))
2Handle, Center (White)
3WP2193353W Whirlpool Refrigerator Trim Handle
42159072 Whirlpool Refrigerator FIP Gasket
5WPW10307490 Whirlpool Door Trim Assembly
6WP489128 Whirlpool Refrigerator Screw
7WP2182179 Whirlpool Cam Closer
8WP489483 Whirlpool Screw
9WP2206629B Whirlpool Refrigerator Bracket
10WP3400012 Whirlpool Refrigerator Screw
11Trim, Door (3)
12WP489491 Whirlpool Refrigerator Screw
13WP2195917K Whirlpool Refrigerator Endcap
142311642 Whirlpool Refrigerator Wire Harness
15Connector
16WP2182181 Whirlpool Refrigerator Thimble
