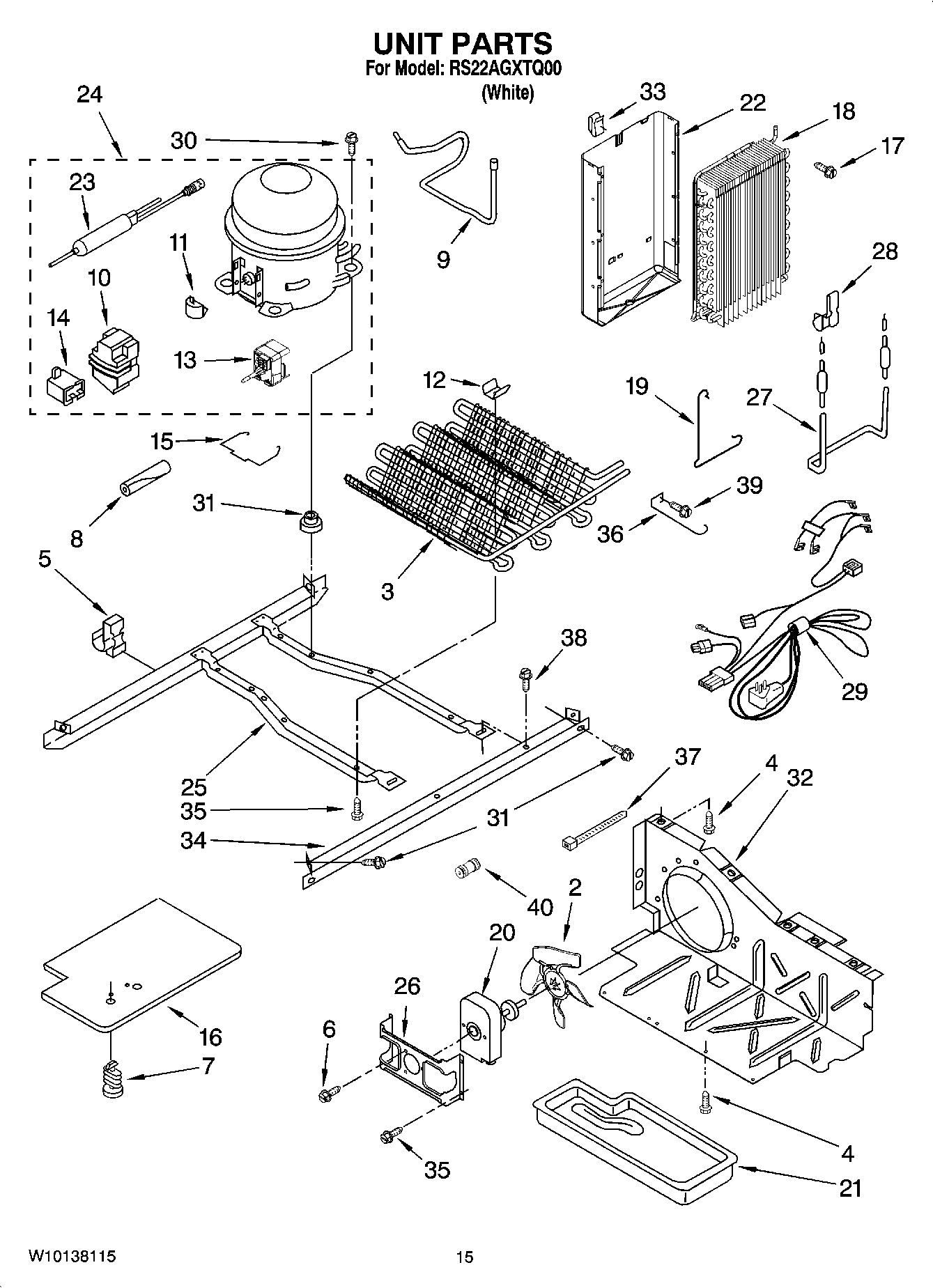

RS22AGXTQ00 09 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
7	489396 Whirlpool Refrigerator Clip
8	SLEEVE
9	2220642 Whirlpool Refrigerator Tube
10	WP61002138 Whirlpool Refrigerator Terminal Cover
11	2169410 Whirlpool Refrigerator Overload
12	W10683556 Whirlpool Refrigerator Clip
13	WP2188831 Whirlpool Refrigerator Start Device
14	WP2201147 Whirlpool Refrigerator Capacitor
14	WP65889-4 Whirlpool Refrigerator Capacitor
15	2212996 Whirlpool Refrigerator Retainer
16	W11115203 Whirlpool Control Panel
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188822 Whirlpool Refrigerator Evaporator
19	Clamp
20	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	Heat Shield
23	W10843121 Whirlpool Refrigerator Tube
23	WPW10143759 Whirlpool Dryer Filter
24	W10355489 Whirlpool Refrigerator Compressor
25	2304903 Whirlpool Refrigerator Frame
26	WP2181929 Whirlpool Refrigerator Bracket
27	WP2323197 Whirlpool Refrigerator Heater
28	W11623163 Whirlpool Refrigerator Clip
29	Unit, Harness
31	WP4387558 Whirlpool Refrigerator Compressor Grommet
31	489340 Whirlpool Refrigerator Screw
31	876811 Whirlpool Grommet
32	W10896764 Whirlpool Refrigerator Air Baffle
33	Clip, Heat Shield
34	Unit Mounting Rail
35	W11544659 Whirlpool Refrigerator Screw
36	Guard, Fan
37	WPW10339879 Whirlpool Wire Tie
38	WP489427 Whirlpool Refrigerator Screw
39	WPW10141625 Whirlpool Refrigerator Screw Assembly
40	VALVE, ACCESS (5/8“)
40	Following Parts Not Illustrated and Optional Parts Not Included
40	876764 Whirlpool Refrigerator Primary Valve
40	978026 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	WP978025 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (1/2“)
40	WP4373559 Whirlpool Fitting
40	REFRIGERANT CHARGE 5.0 oz. (R-134A)
