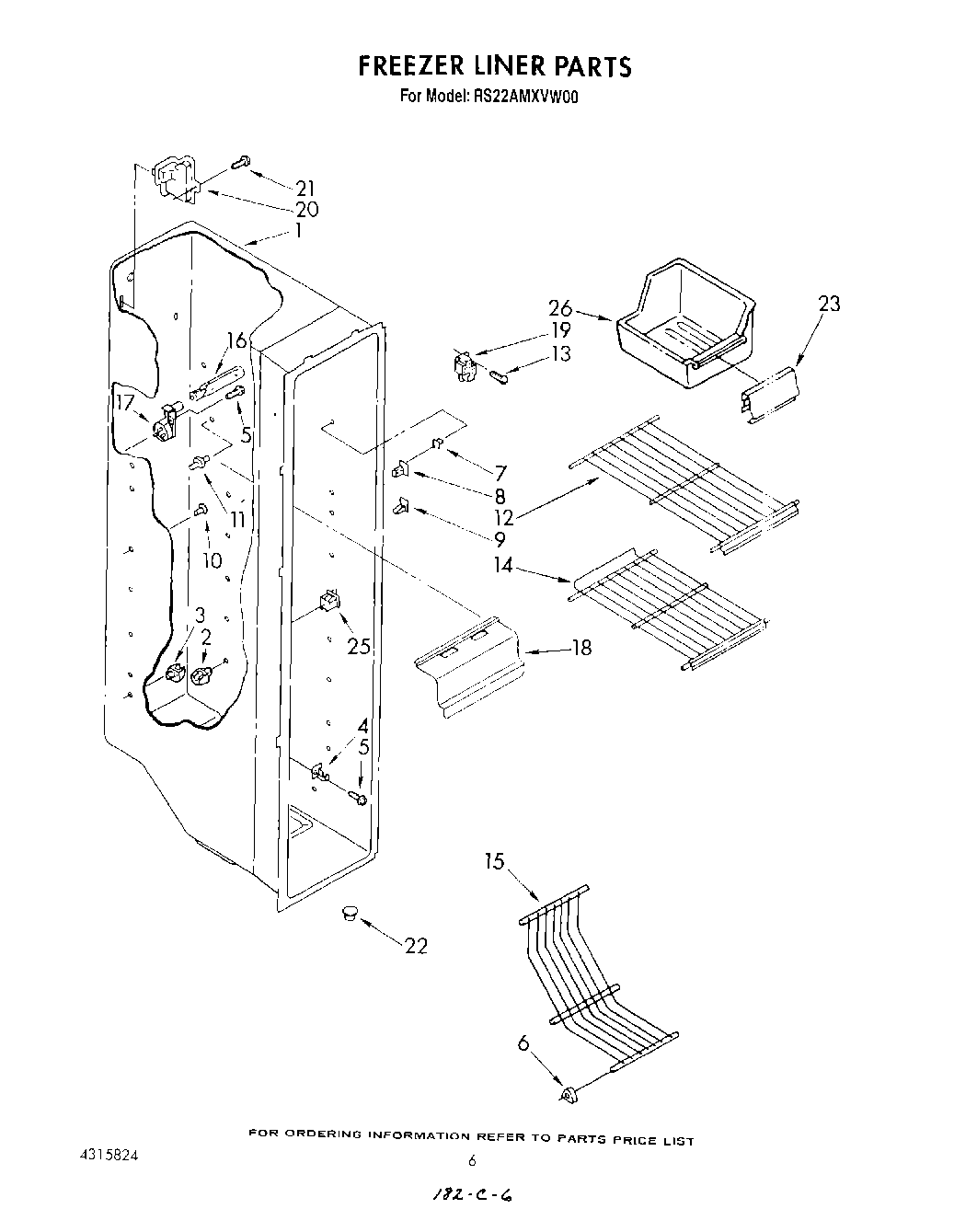

RS22AMXVL00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2819091 Whirlpool Refrigerator Shelf Stud
4Evaporator, Support
5W11624204 Whirlpool Screw
6Grommet, Trivet (4)
7Stud, Support
8Stud, Front R.S.
9Stud, Rear R.S.
10Grommet (8)
114388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12Shelf (1)
13WP489478 Whirlpool Refrigerator Screw
13SCREW
14Shelf (Long)
15Trivet
16WP548049 Whirlpool Refrigerator Light Bulb
17Socket Assembly
18Lens, Light
19Terminal Block, Multiple
20Cover, Wiring
21WP488729 Whirlpool Refrigerator Door Screw
22Fitting, Drain
23Trim Ice Cube Pan
25W11384469 Whirlpool Door Switch
26PAN-ICE
