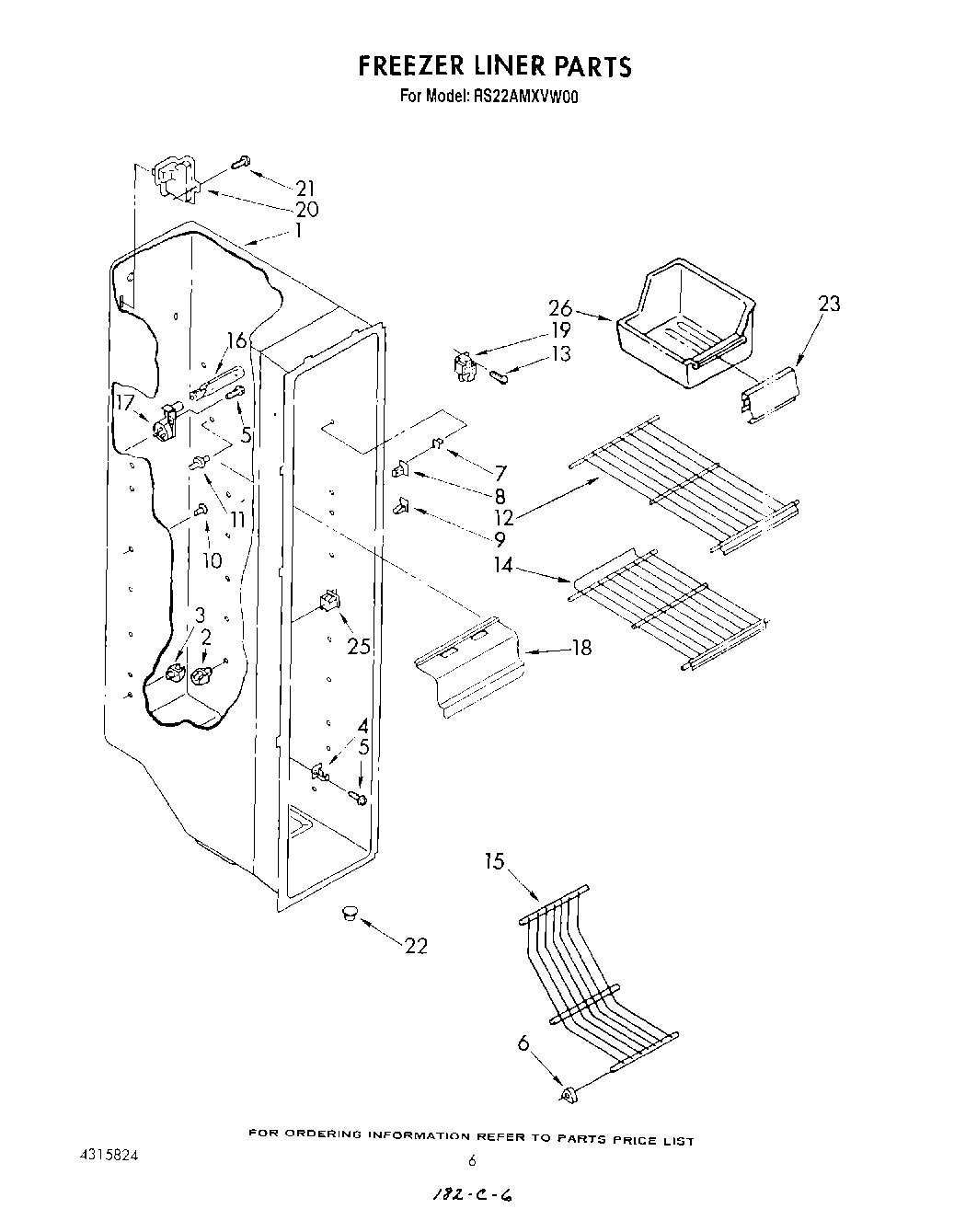

RS22AMXVW00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	819091 Whirlpool Refrigerator Shelf Stud
4	Evaporator, Support
5	W11624204 Whirlpool Screw
6	Grommet, Trivet (4)
7	Stud, Support
8	Stud, Front R.S.
9	Stud, Rear R.S.
10	Grommet (8)
11	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
12	Shelf (1)
13	WP489478 Whirlpool Refrigerator Screw
13	SCREW
14	Shelf (Long)
15	Trivet
16	WP548049 Whirlpool Refrigerator Light Bulb
17	Socket Assembly
18	Lens, Light
19	Terminal Block, Multiple
20	Cover, Wiring
21	WP488729 Whirlpool Refrigerator Door Screw
22	Fitting, Drain
23	Trim Ice Cube Pan
25	W11384469 Whirlpool Door Switch
26	PAN-ICE
