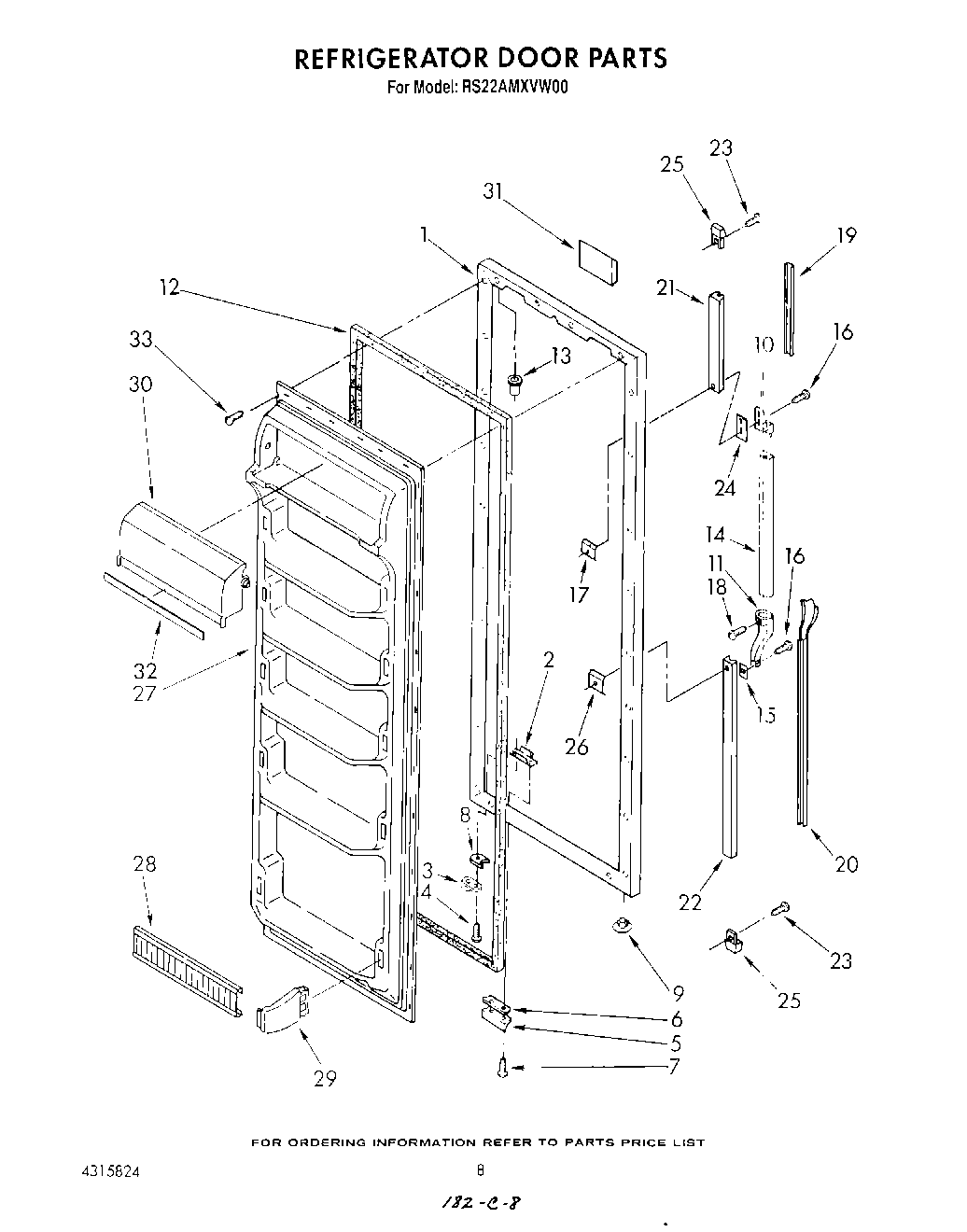

RS22AMXVW00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond)
1	Refrigerator Door (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	End Cap
11	Handle End, Side
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center
15	Shim
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP939101 Whirlpool Refrigerator Plate
18	Screw
19	Insert, Extension
20	Insert, Extension
21	Insert Retainer (Top)
22	Retainer, Insert (Bottom)
23	Screw, 10-32 x 5/8
24	Shim, Handle
25	End Cap
26	Screw Anchor (2)
27	Interior, Door Panel
28	Trim, Shelf (5)
29	Retainer, Door Trim (10)
30	Door, Compartment
31	Nameplate
32	Trim, Compartment Door
