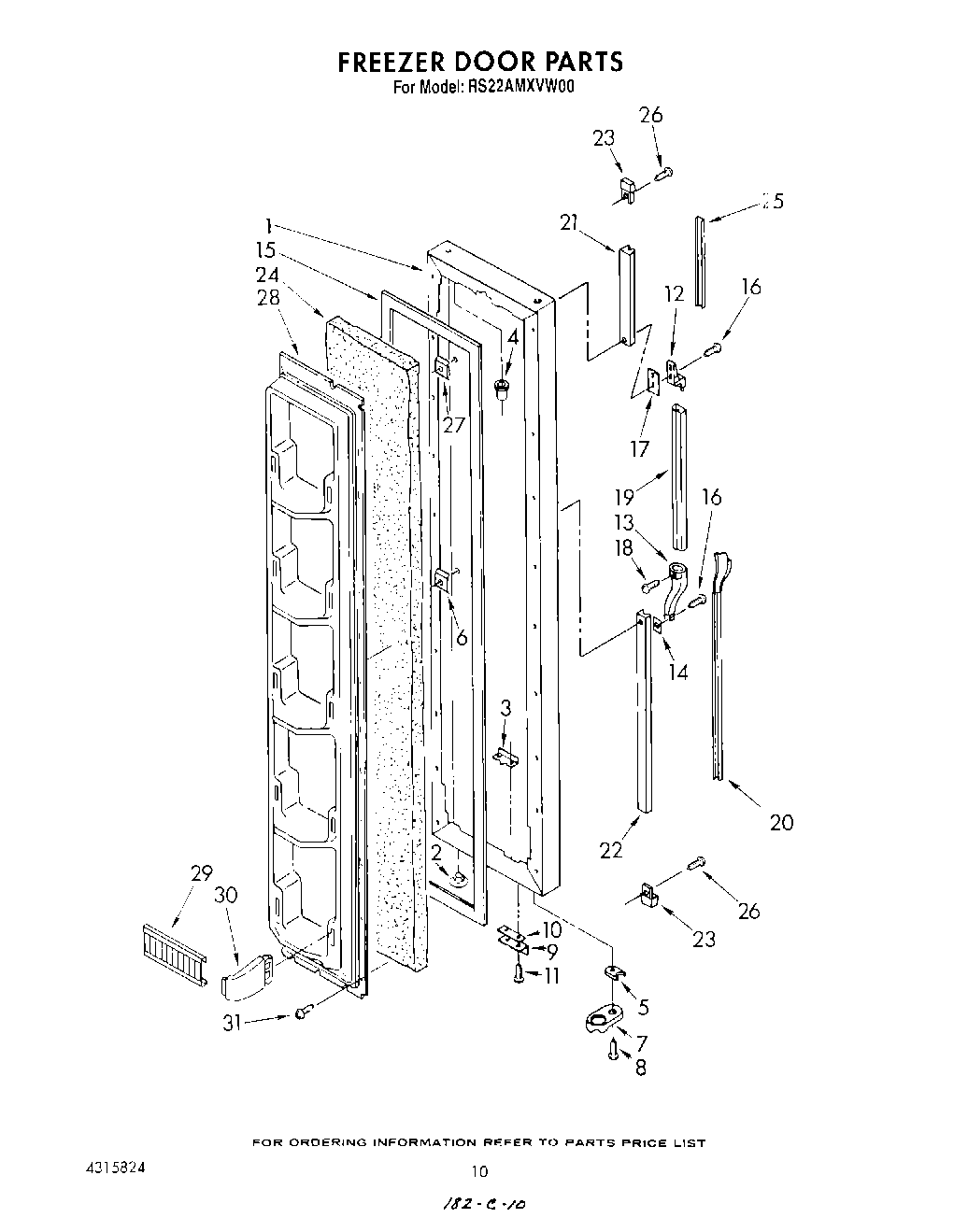

RS22AMXVW00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Almond (Also Order Item 24))
1	Freezer, Door Panel (White)
2	Hole Plug (2) (Almond)
2	Hole Plug (2)
3	Tap Plate
4	Cap, Hinge Sleeve (2)
5	WP1104787 Whirlpool Refrigerator Shim
6	Screw Anchor (2)
7	4318165 Whirlpool Refrigerator Door Closure Cam Kit
8	WP489069 Whirlpool Compactor Screw
9	Bracket, Door Stop
10	Shim
11	Screw (Repair)
11	Screw, 89 x 5/8
12	End Cap
13	Handle End, Side
14	Shim
15	2188405A Whirlpool Refrigerator Door Gasket
16	WP488729 Whirlpool Refrigerator Door Screw
17	Shim, Handle
18	Screw
19	Handle, Center
20	Insert, Extension
21	Insert Retainer (Top)
22	Retainer, Insert (Bottom)
23	End Cap
24	WPL 876029
25	Insert, Extension
26	Screw, 10-32 x 5/8
27	WP939101 Whirlpool Refrigerator Plate
28	Interior, Door Panel
29	Trim, Door Shelf
30	WP2196100 Whirlpool Shelf Retainer Bar Support
