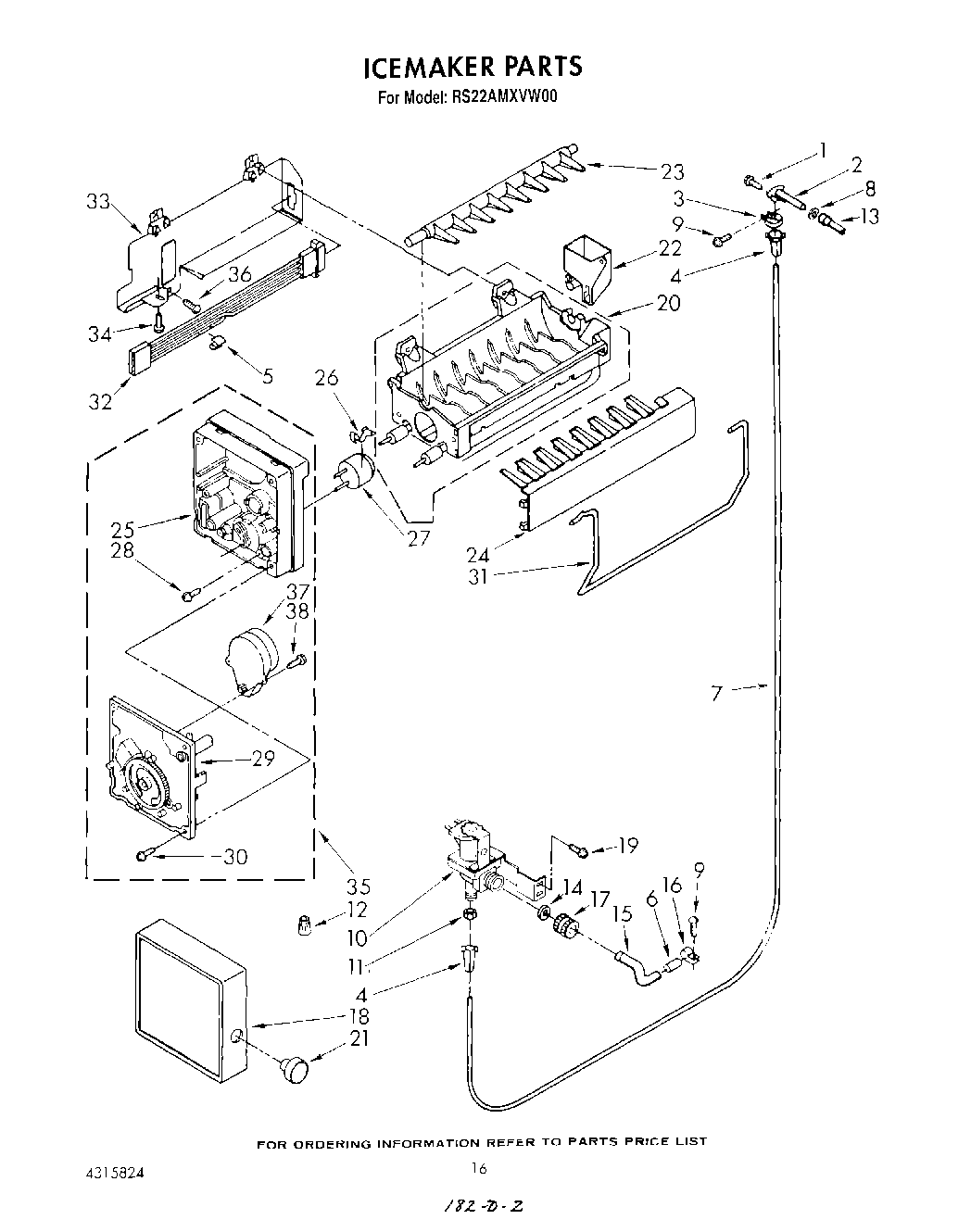

RS22AMXVW00 10 – ICEMAKER , NOT ILLUSTRATED

RS22AMXVW00 10 – ICEMAKER , NOT ILLUSTRATED

Written by

in

RS22AMXVW00 10 – ICEMAKER , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Torx Key
	285006 Whirlpool Spray
	WPL LIT4315824
	WPL LIT628107
	WPL LIT1123779
	350956 Whirlpool Spray Assembly
	WPL LIT1124444
	Leveler (Thinner)
	WPL LIT1124442
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489069 Whirlpool Compactor Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	Screw, 10-32 x 49/64
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	Shield, Heat
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	Screw, 8-15 x 1/2 (4)
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	TAPE, VINYL (3/4 X 108“)
38	Almond (Uncut)
38	489136 Whirlpool Refrigerator Screw
38	876370 Whirlpool Refrigerator Insulation
38	511873 Whirlpool Refrigerator Paint
38	WP72107 Whirlpool Touchup
38	799344 Whirlpool Refrigerator Paint
38	72017 Whirlpool Appliance Touch-Up Paint White
38	833938 Whirlpool Refrigerator Terminal
38	WPL 876029
38	Transformer (115-230 Volt)
38	72032 Whirlpool Touch Up Paint Black
38	212643 Whirlpool Refrigerator Permagum Sealer
38	WP542638 Whirlpool Refrigerator Grease
38	Enamel, Black (1 Qt. Uncut)
38	Silicone (Spray)
38	WP505587 Whirlpool Refrigerator Sealer
38	WP503695 Whirlpool Refrigerator Sealer
38	WPL 799833
38	606755 Whirlpool Refrigerator Bag
