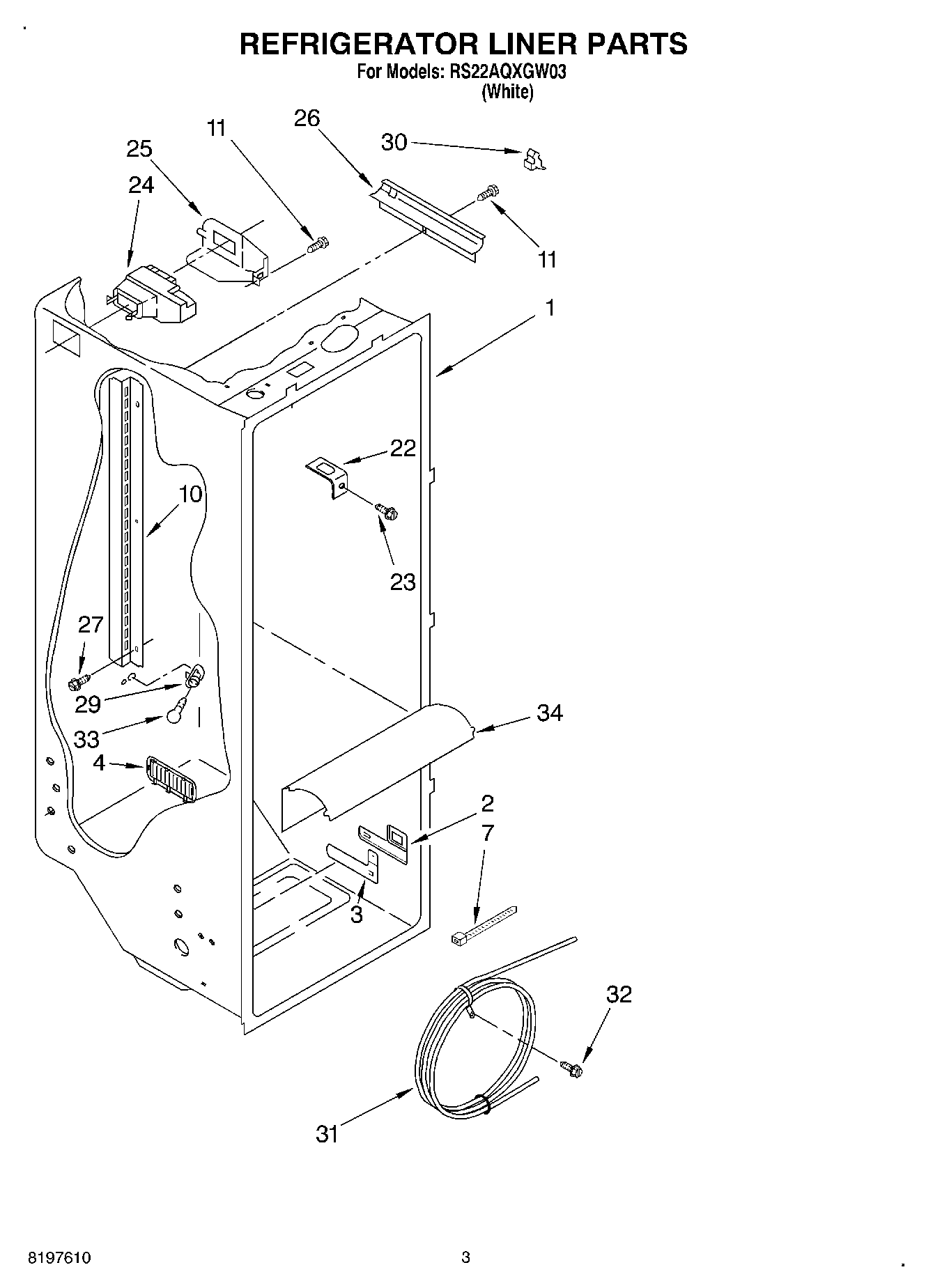

RS22AQXGW03 02 – REFRIGERATOR LINER

RS22AQXGW03 02 – REFRIGERATOR LINER

Written by

in

RS22AQXGW03 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
7WPW10339879 Whirlpool Wire Tie
10Shelf Ladder
11W10759522 Whirlpool Screw
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27WP488729 Whirlpool Refrigerator Door Screw
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
32Screw (2)
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
