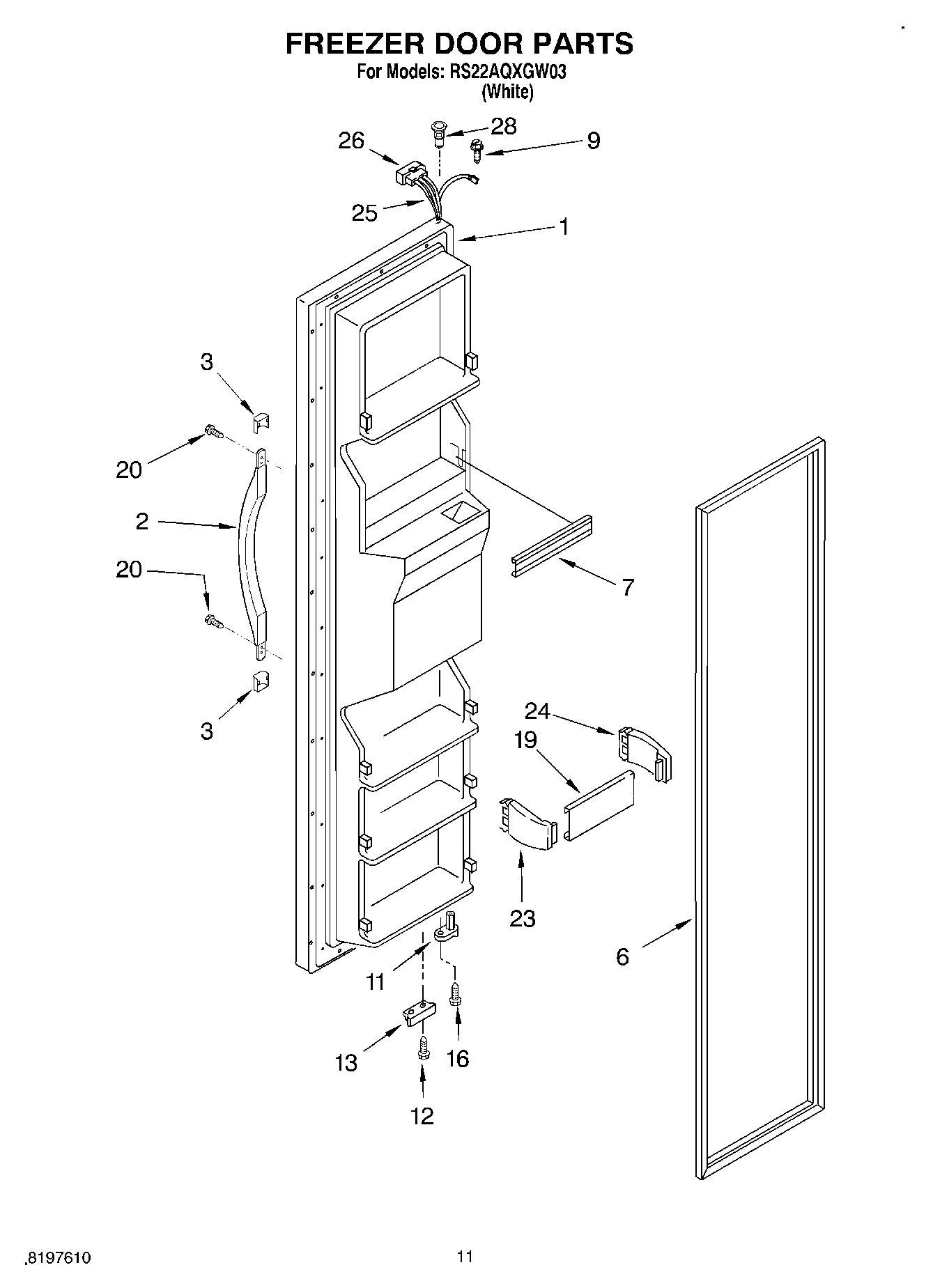

RS22AQXGW03 07 – FREEZER DOOR

RS22AQXGW03 07 – FREEZER DOOR

Written by

in

RS22AQXGW03 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (White)
2Handle, Center (White)
3WP2193353W Whirlpool Refrigerator Trim Handle
62159072 Whirlpool Refrigerator FIP Gasket
7WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
16WP3400012 Whirlpool Refrigerator Screw
19Door, Shelf (4)
20WP489491 Whirlpool Refrigerator Screw
23WP2195917K Whirlpool Refrigerator Endcap
24ENDCAP
25Wire Harness
26WP2154473 Whirlpool Refrigerator Connector
28WP2182181 Whirlpool Refrigerator Thimble
