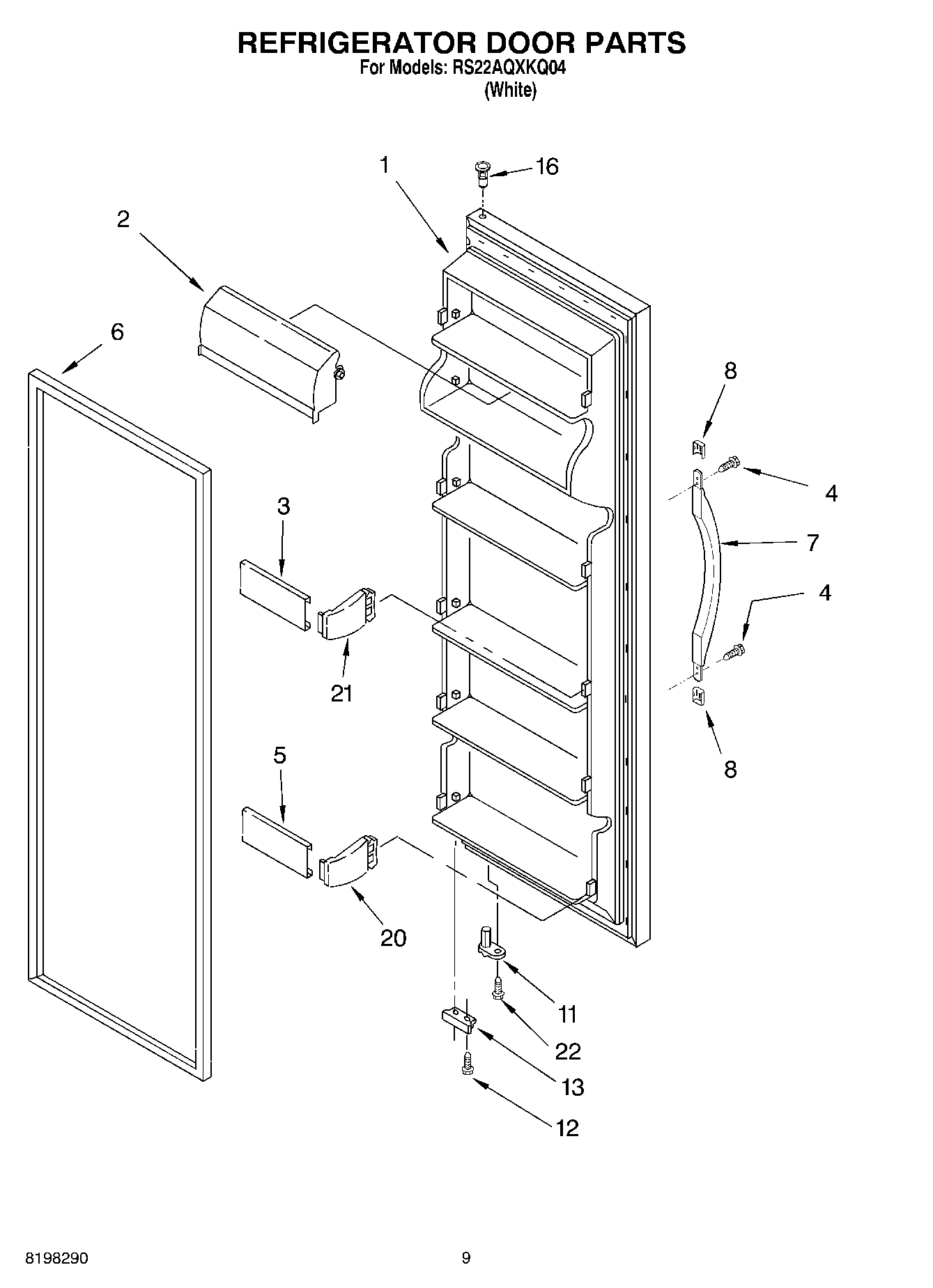

RS22AQXKQ04 06 – REFRIGERATOR DOOR

RS22AQXKQ04 06 – REFRIGERATOR DOOR

Written by

in

RS22AQXKQ04 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
2WP2256101 Whirlpool Dairy Door
3Trim, Door Shelf
4WP489491 Whirlpool Refrigerator Screw
5WP2256010 Whirlpool Door Shelf Trim
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center (White)
8WP2193353W Whirlpool Refrigerator Trim Handle
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
16WP2182181 Whirlpool Refrigerator Thimble
20ENDCAP
21WP2195915 Whirlpool Door Shelf Support
22WP3400012 Whirlpool Refrigerator Screw
