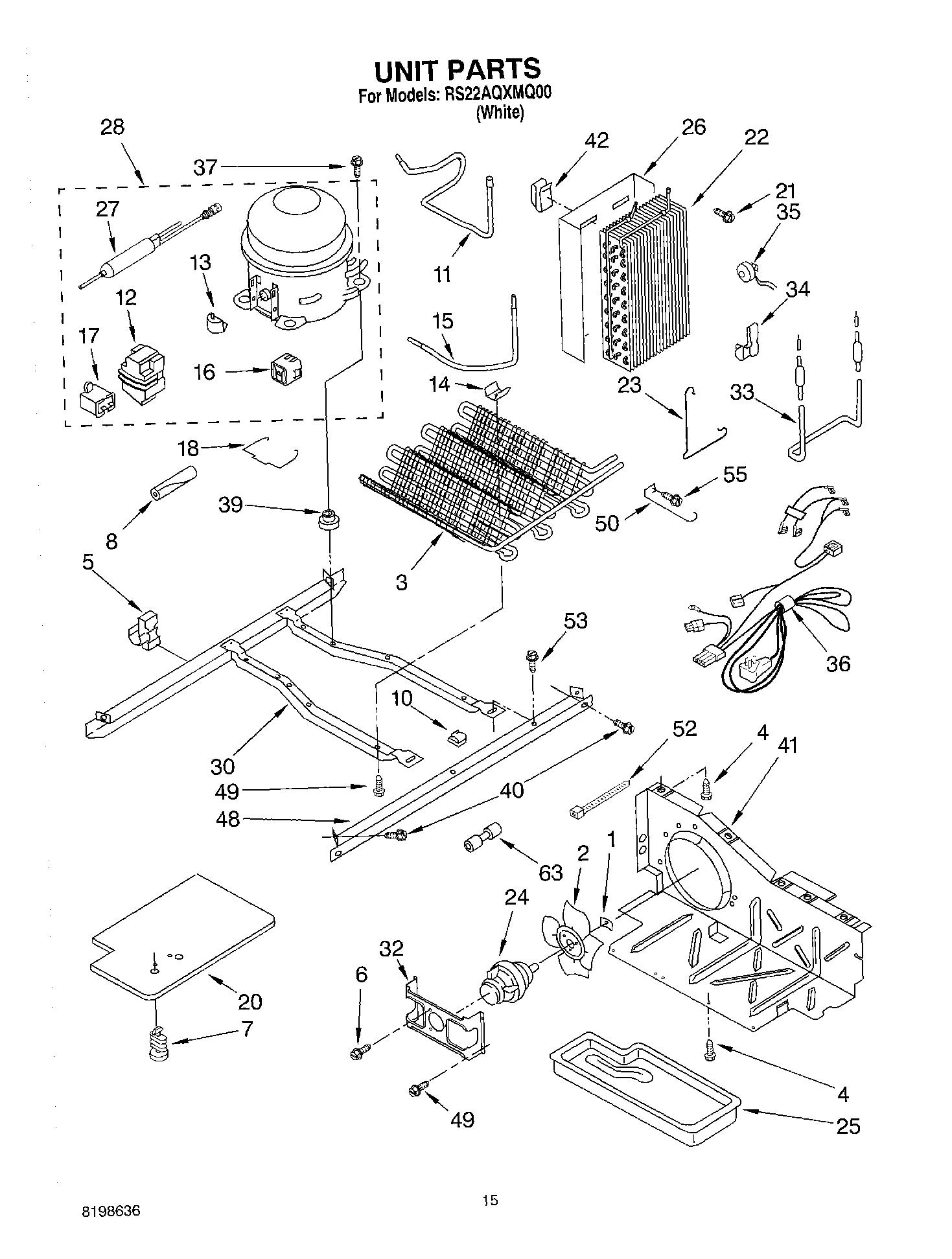

RS22AQXMQ00 09 – UNIT PARTS

RS22AQXMQ00 09 – UNIT PARTS

Written by

in

RS22AQXMQ00 09 – UNIT PARTS

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
7	489396 Whirlpool Refrigerator Clip
8	SLEEVE
10	Clip, Tube (3)
11	2220642 Whirlpool Refrigerator Tube
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	W10683556 Whirlpool Refrigerator Clip
15	Tube, Condenser to Heat Loop
16	WP2188831 Whirlpool Refrigerator Start Device
17	WP2201147 Whirlpool Refrigerator Capacitor
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	2255009 Whirlpool Retainer
20	Unit Cover, Bottom
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield And Drain Pan
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Unit, Harness
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
63	and Optional Parts Not Included
63	FOLLOWING PARTS NOT ILLUSTRATED
63	VALVE, ACCESS (5/8“)
63	876764 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	WP4373559 Whirlpool Fitting
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
63	REFRIGERANT CH
