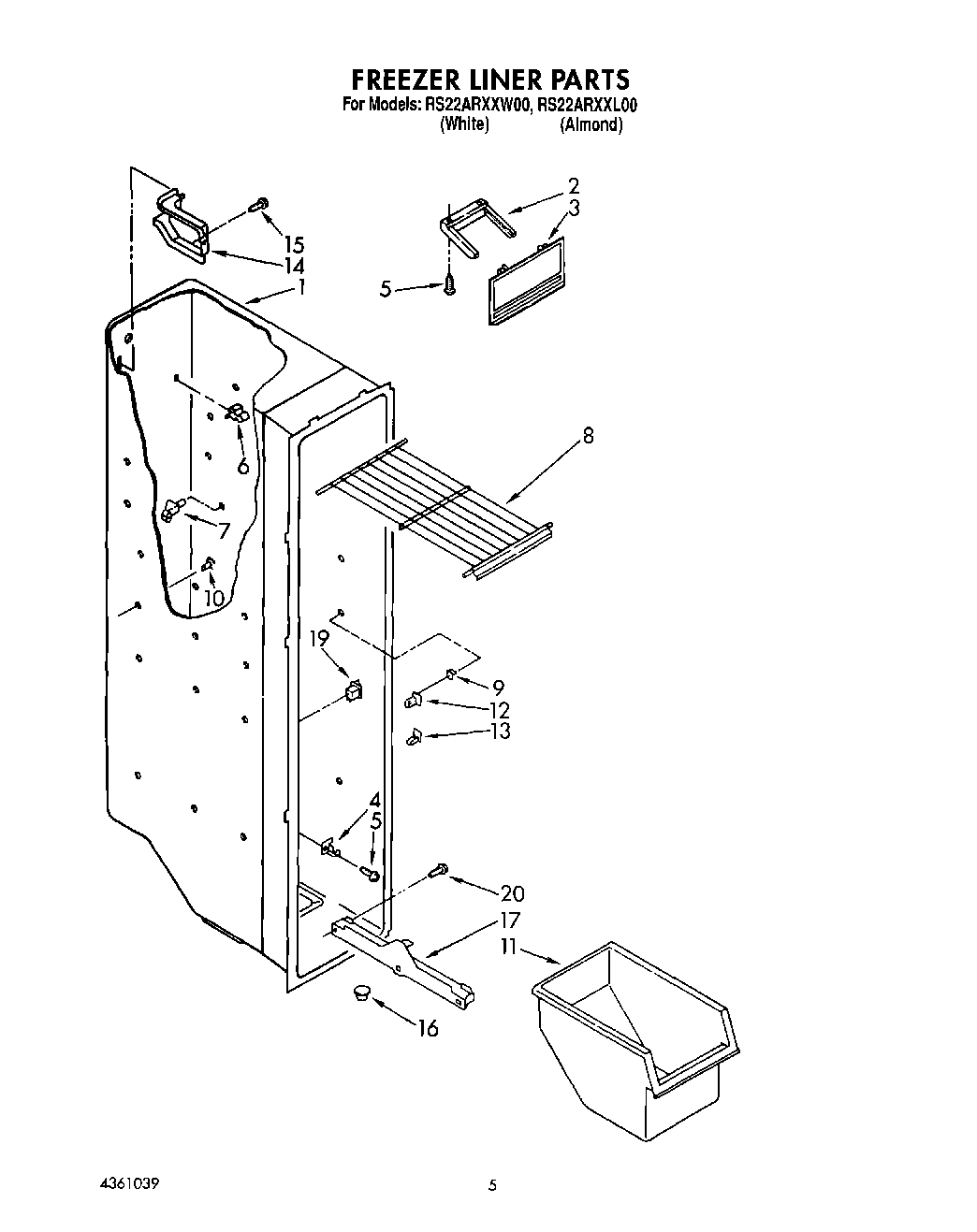

RS22ARXXL00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
4Evaporator, Support
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (Long)
9Stud, Support
10Grommet (8)
11Bin, Freezer
12Stud, Front R.S.
13Stud, Rear R.S.
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
16Fitting, Drain
17Slide, Basket (Left Side)
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Screw, 8 x 1
