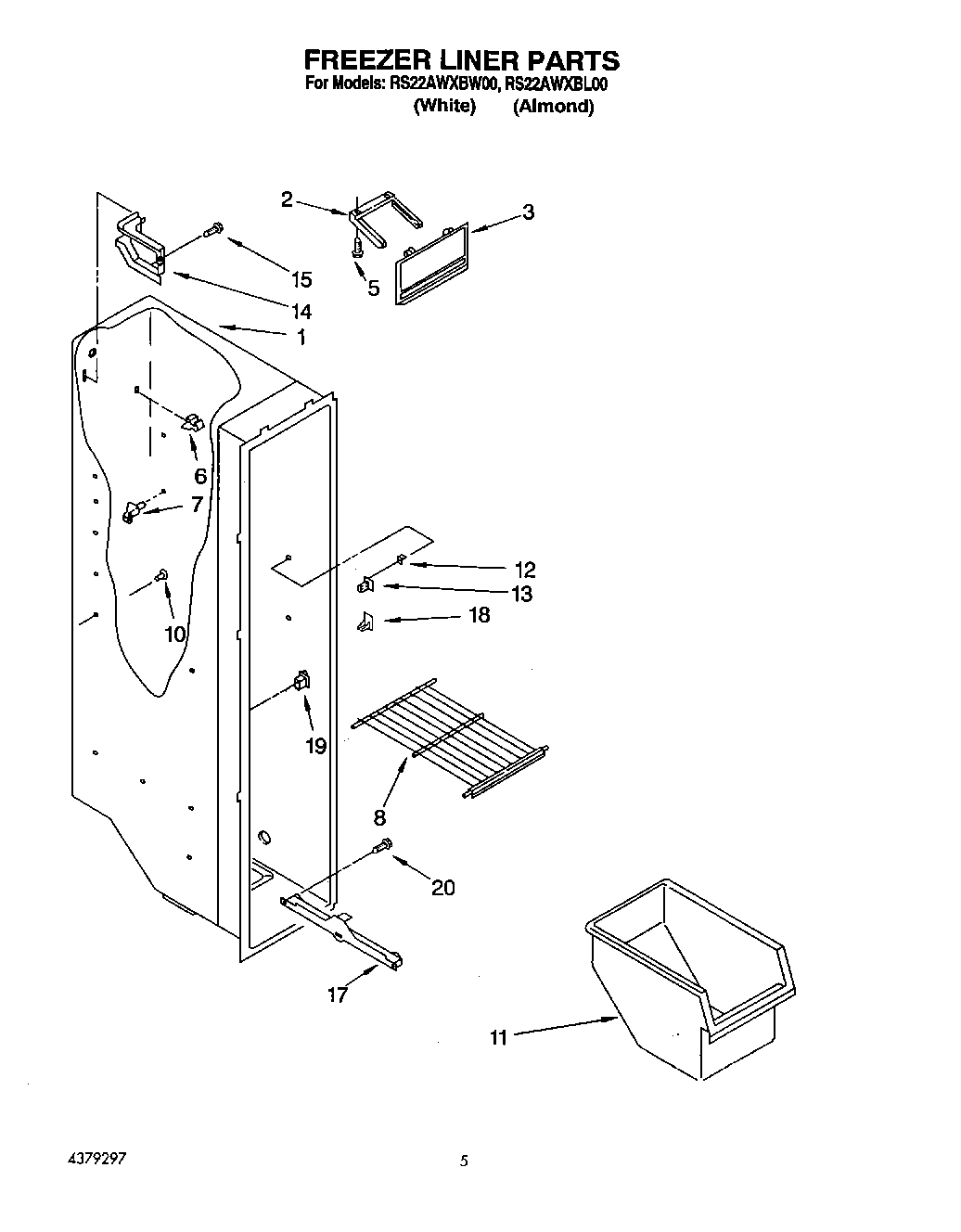

RS22AWXBW00 04 – FREEZER LINERadmin2025-04-26T12:49:27+00:00RS22AWXBW00 04 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Slide, Ice Door |
| 3 | Door, Ice Compartment |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | 2215823 Whirlpool Refrigerator Clip |
| 7 | 4388405 Whirlpool Refrigerator Shelf Stud |
| 8 | Shelf, Small (1) |
| 8 | Shelf, Large (2) |
| 10 | Grommet (8) |
| 11 | Bin, Freezer |
| 12 | Stud, Support |
| 13 | Stud, Front R.S. |
| 14 | Cover, Wiring |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Slide, Basket (Left Side) |
| 18 | Stud, Rear R.S. |
| 19 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 20 | 718257 Whirlpool Dishwasher Screw |
