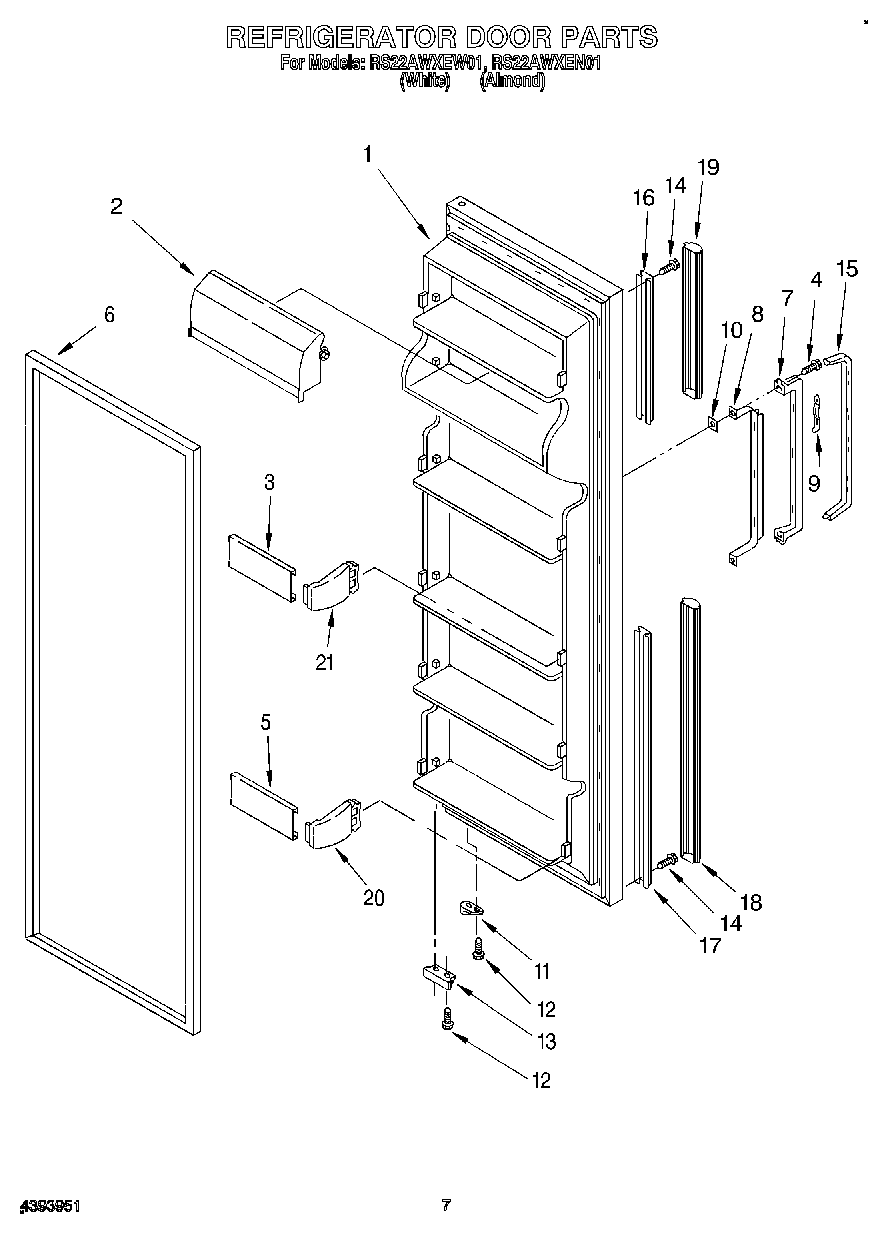

RS22AWXEN01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.6)
1	Refrigerator Door (Almond (Includes Item No.6))
2	WP2256101 Whirlpool Dairy Door
3	Trim, Shelf
5	WP2256010 Whirlpool Door Shelf Trim
6	2159073 Whirlpool Refrigerator Door Gasket
7	Handle, Center (Almond)
7	Handle, Center
8	Reinforcement, Handle
9	Clip, Handle
10	Shim
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop
14	WP489478 Whirlpool Refrigerator Screw
15	Insert, Handle
16	Retainer, Top
17	Retainer (Bottom)
18	Extension, Bottom (Almond)
18	Extension, Bottom
19	Extension, Top
19	Extension, Top (Almond)
20	ENDCAP
21	WP2195915 Whirlpool Door Shelf Support
