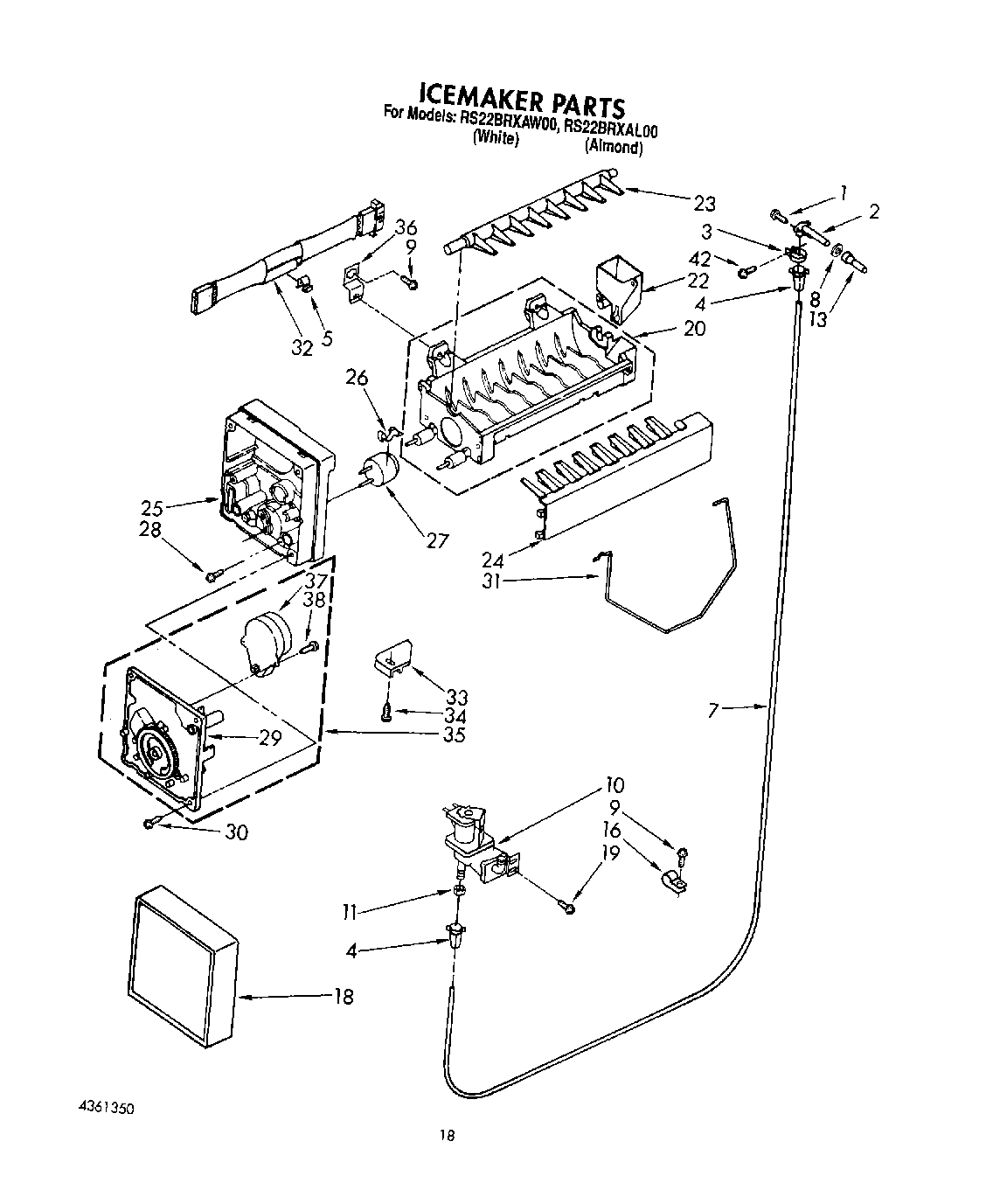

RS22BRXAW00 13 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	Modular Icemaker Service Sheet
	WPL LIT2153292
	WPL LIT2152632
	WPL LIT2155249
	WPL LIT4361350
	Torx Key
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	VALVE-INLT
11	WP627018 Whirlpool Refrigerator Nut
13	Tube, Water Inlet
16	WP488366 Whirlpool Refrigerator Clamp
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
36	Clip, Support (2)
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
42	WP488787 Whirlpool Refrigerator Screw
42	72113 Whirlpool Touch-Up Paint
42	Golden Harvest
42	72032 Whirlpool Touch Up Paint Black
42	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
42	350930 Whirlpool White Spray Paint
42	285006 Whirlpool Spray
42	Almond (Uncut)
42	606755 Whirlpool Refrigerator Bag
42	Leveler (Thinner)
42	WP72107 Whirlpool Touchup
42	799344 Whirlpool Refrigerator Paint
42	72017 Whirlpool Appliance Touch-Up Paint White
42	350956 Whirlpool Spray Assembly
42	212643 Whirlpool Refrigerator Permagum Sealer
42	Golden Harvest (Uncut)
42	350942 Whirlpool Spray Paint
42	511873 Whirlpool Refrigerator Paint
42	WPL 72112
42	833938 Whirlpool Refrigerator Terminal
42	876370 Whirlpool Refrigerator Insulation
42	WP503695 Whirlpool Refrigerator Sealer
42	WP505587 Whirlpool Refrigerator Sealer
42	WP542638 Whirlpool Refrigerator Grease
42	Platinum (Uncut)
42	TAPE, VINYL (3/4 X 108“)
42	CEMENT, ALUMILASTIC (1 1/4 OZ.)
42	Enamel, Black (1 Qt. Uncut)
42	WPL 799833
42	WPL 876029
42	Enamal, Toast (1 Qt. Uncut)
42	Paint, Spray (13 Oz.) (Platinum)
42	Toast
42	Transformer (115-230 Volt)
