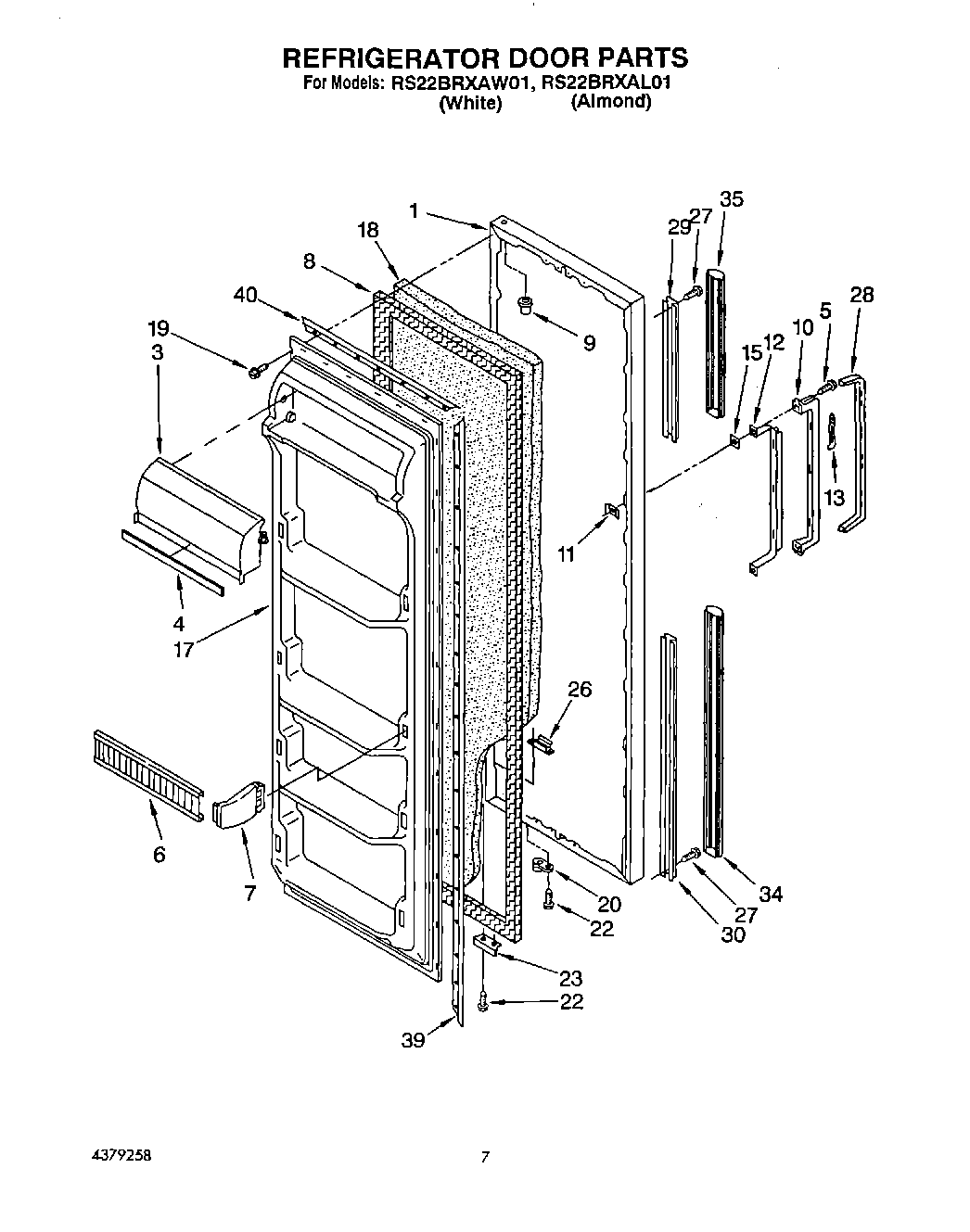

RS22BRXAW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond (Also Order Item 18))
3	Door, Compartment
4	Trim, Compartment Door
6	Trim, Shelf (5)
7	Retainer, Door Trim
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle (For Almond Model)
11	WP939101 Whirlpool Refrigerator Plate
12	Reinforcement, Handle
13	Clip, Handle
15	Shim
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop
26	Tap, Plate
27	WP489478 Whirlpool Refrigerator Screw
28	Insert, Handle
29	Retainer, Top
30	Retainer (Bottom)
34	Extension (Bottom)
35	Extension, Top
39	Retainer, Gasket
40	Gasket Retainer, Top & Bottom
