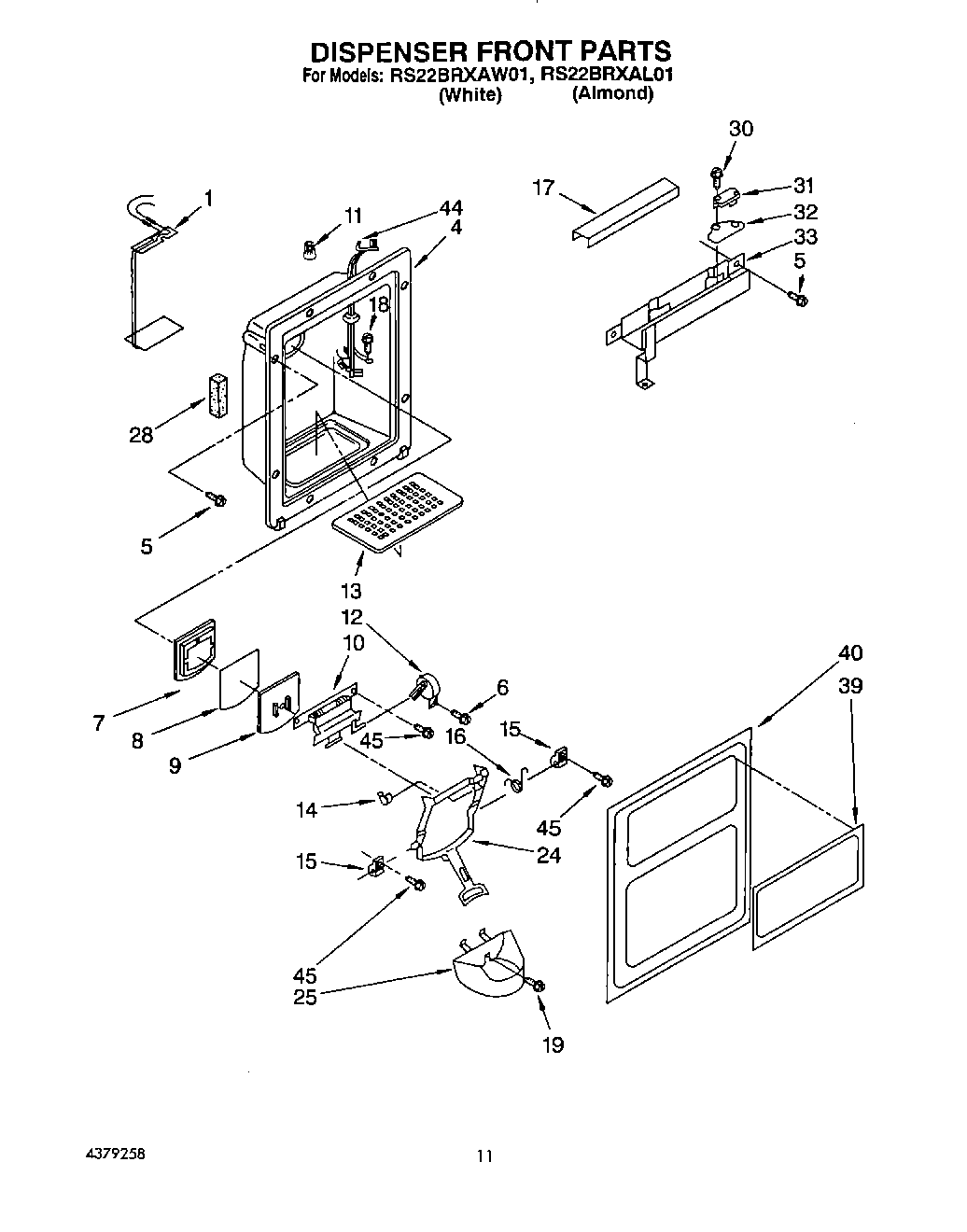

RS22BRXAW01 08 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	Screw, 8-18 x 3/4
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (Black)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Screw
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
28	Seal
30	Screw,
31	814037 Whirlpool Microwave Switch
32	Insulator, Switch (2)
33	Bracket, Control
39	Plaque, Front Cover
40	Front Cover, Housing (Includes Item 39)
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
