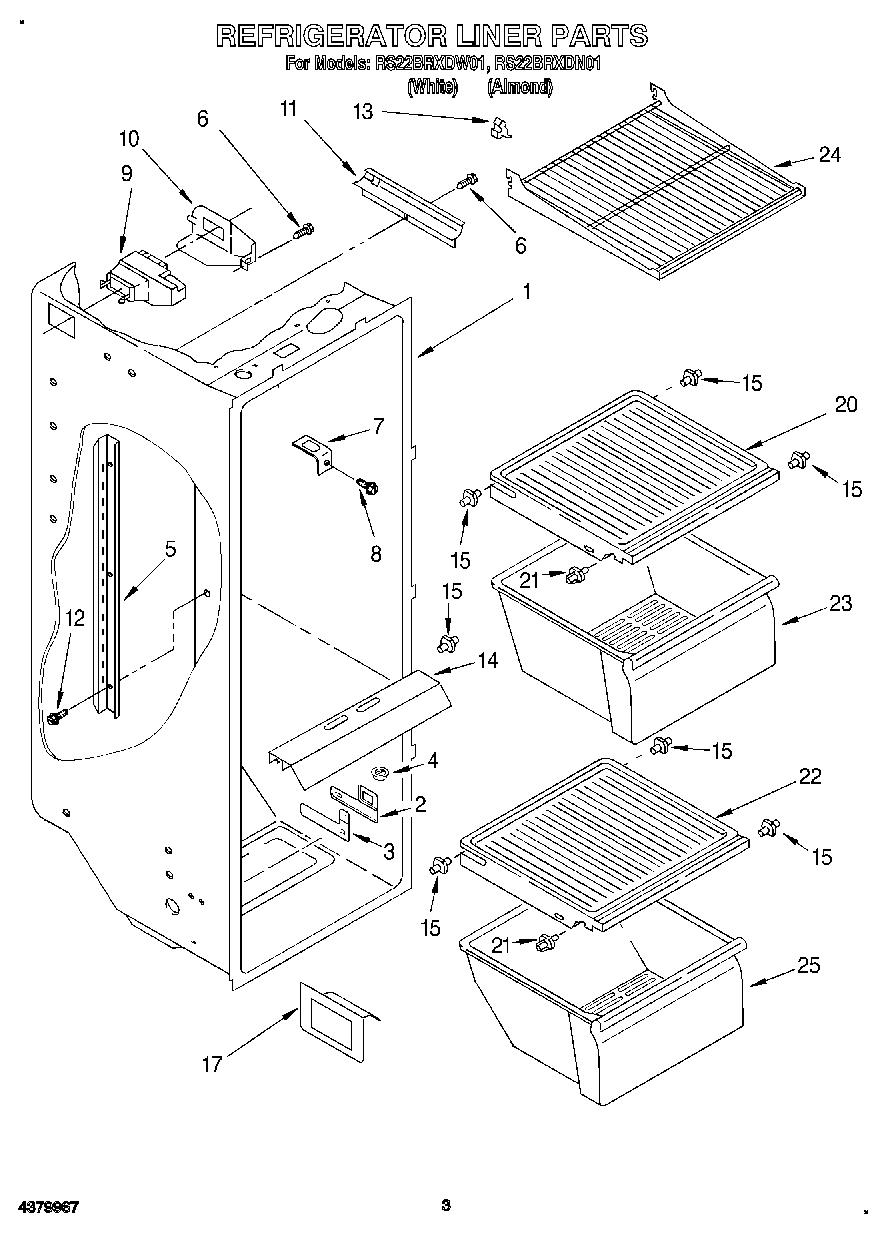

RS22BRXDW01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
42171846 Whirlpool Refrigerator Release Valve
5Ladder, Shelf
6W10759522 Whirlpool Screw
7WP2256085 Whirlpool Refrigerator Retainer
8WP488488 Whirlpool Refrigerator Screw
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12WP488729 Whirlpool Refrigerator Door Screw
132215823 Whirlpool Refrigerator Clip
14Light Lens
154388538 Whirlpool Refrigerator Stud Shelf Kit (White)
172179350 Whirlpool Refrigerator Deflector
20W10508993 Whirlpool Refrigerator Cover Pan
214388539 Whirlpool Refrigerator Shelf Stud
23PAN-CRISPR
24Shelf, Cantilever (3)
25WP2188664 Whirlpool Dishwasher Meat Crisper Pan
